Components

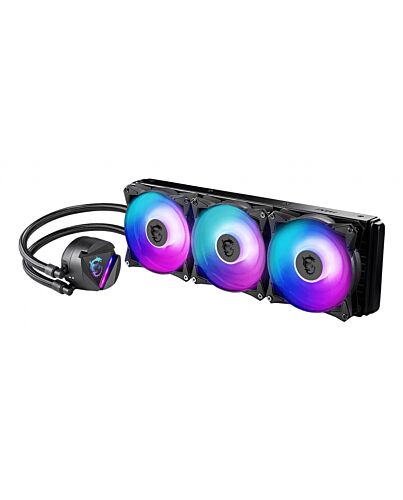

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
£99.52
MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready', Liquid cooling kit, 12 cm, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Key Features
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200,1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3
Specifications
Performance
Suitable location*
Motherboard, Processor
Type*
Liquid cooling kit
Fan diameter
12 cm
Supported processor sockets
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Compatible processor series
AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9
Minimum airflow (imperial)
21.63 cfm
Maximum airflow
78.73 cfm
Minimum air pressure
0.23 mmH2O
Maximum air pressure
2.39 mmH2O
Fan diameter 2
12 cm
Pulse-width modulation (PWM) support
Yes
Fan noise level (min)
14.3 dB
Fan noise level (max)
34.3 dB
Pump noise level
18 dB
Fan bearing technology
Ball bearing
Pump bearing technology
Ceramic bearing
Pump connector
3-pin
Pump motor speed
4200 RPM
Fan speed (min)
500 RPM
Fan speed (max)
2000 RPM
Design
Product colour*
Black
Radiator material
Aluminum
Design
Number of fans
3 fan(s)
Illumination LED
Yes
Fan connector
4-pin
Power
Fan power consumption
1.8 W
Pump power consumption
4.08 W
Pump voltage
12 V
Pump current
340 mA
Fan voltage
12 V
Fan current
0.15 A
Weight & dimensions
Radiator width
39.4 cm
Radiator depth
12 cm
Radiator height
2.7 cm
Tube length
40 cm
Waterblock width
8.06 cm
Waterblock depth
6.68 cm
Waterblock height
4.86 cm
Fan dimensions (W x D x H)
120 x 120 x 25 mm
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4719072864088 |
|---|---|
| MPN | MAG CORELIQUID 360R V2 |
| BRAND | MSI |
