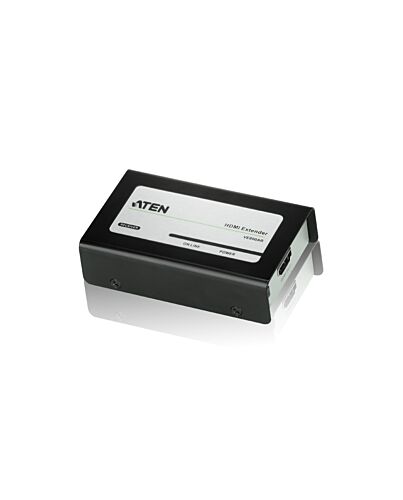

ATEN HDMI receiver (60m)
£56.22
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
1x VE800AR HDMI Receiver
1x 0AD6-1705-10EG Power Adapter
1x Mounting Kit
1x User Instructions
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
1x VE800AR HDMI Receiver
1x 0AD6-1705-10EG Power Adapter
1x Mounting Kit
1x User Instructions
Key Features
- Extends an HDMI output via a single Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Specifications
Features
Type*
AV receiver
Maximum resolution*
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
60 m
LED indicators
Yes
Supported video modes
1080i, 1080p
Supported graphics resolutions
1920 x 1200 (WUXGA)
Bandwidth
6.75 Gbit/s
Bandwidth
225 MHz
HDCP
Yes
Material
Metal
Impedance
100 Ω
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
Ethernet LAN
Yes
Number of HDMI outputs
1
Video out
HDMI Type A F
DC-in jack
Yes
Power
Operating voltage
5 V
Power consumption (typical)
0.75 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
315 g
Receiver dimensions (WxDxH)
550 x 90 x 23 mm
Receiver weight
160 g
Packaging data
Package width
59 mm
Package depth
119 mm
Package height
160 mm
Package weight
322 g
Packaging content
AC adapter included
Yes
Manual
Yes
Mounting kit
Yes
Logistics data
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
178 mm
Master (outer) case gross weight
6.91 kg
Master (outer) case net weight
6.3 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4719264642272 |
|---|---|
| MPN | VE800AR-AT-E |
| BRAND | ATEN |
