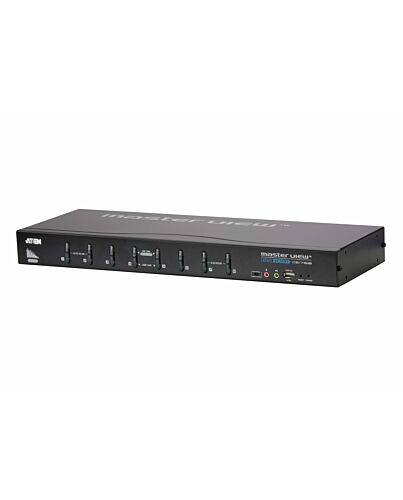

ATEN 8-Port USB DVI KVM Switch with Audio
£690.80
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers f a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all f the original single console, making it ideal for industry-grade IT applications and management.
1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02U USB DVI-D KVM Cable Sets
1x Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all f the original single console, making it ideal for industry-grade IT applications and management.
1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02U USB DVI-D KVM Cable Sets
1x Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
Key Features
- Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B
- Supports a digital (DVI) or analog (VGA) video output; Cascadable to three levels – control up to 512 computers
- Broadcast e – allows you to send commands f the console to all computers to perform operations simultaneously
- Multi-Display feature – stack up to four CS1768 units and display video f up to four monitors (dual display / triple display / quad display)
Specifications
Ports & interfaces
Number of computers controlled*
8
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DVI-I
DVI-I ports quantity
8
USB 2.0 Type-B ports quantity
8
Console ports*
3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
10
Number of microphone inputs
10
DC-in jack
Yes
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Video bandwidth
60 Hz
Scan interval
1,5,255 s
DDC2B support
Yes
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
4.53 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
437.2 mm
Depth
161.2 mm
Height
44 mm
Weight
3.61 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
4.07 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
10.8 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
13.6 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423774438 |
|---|---|
| MPN | CS1768 |
| BRAND | ATEN |
