Data Input Devices

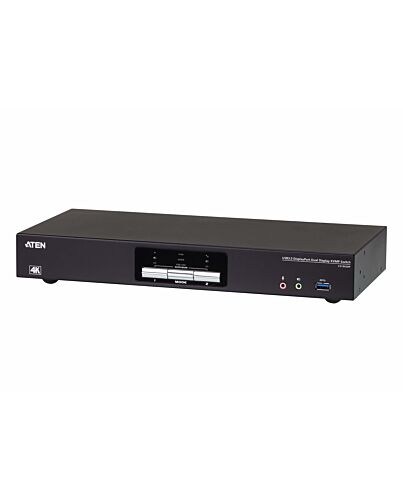

ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW
£341.95
ATEN 2P USB3.0 DisplayPORT Dual View KVMP SW, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, 3.48 W, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
1x LIN2-418K-E12G Power Adapter
1x User Instructions
1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG/LIN5-0205-21DG Audio Cables
1x LIN2-418K-E12G Power Adapter
1x User Instructions
Key Features
- Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Quad-Display – Easily connect two CS1942DP units for a second dual-screen setup controlled through a single connection
- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector2
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter1
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
6
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports*
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,99 s
Auto scan delay (min)
1 s
Auto scan delay (max)
99 s
HDCP
Yes
Daisy chain
Yes
Firmware upgradeable
Yes
Design
Rack mounting*
No
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
12 V
Power consumption (typical)
3.48 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
156.6 mm
Depth
335 mm
Height
44 mm
Weight
2.74 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
3.36 kg
Packaging content
Cables included
Audio (3.5mm), DisplayPort to Mini DisplayPort, USB
Manual
Yes
AC adapter included
Yes
Logistics data
Master (outer) case net weight
8.22 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
11.2 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4719264645952 |
|---|---|
| MPN | CS1942DP |
| BRAND | ATEN |
