Components

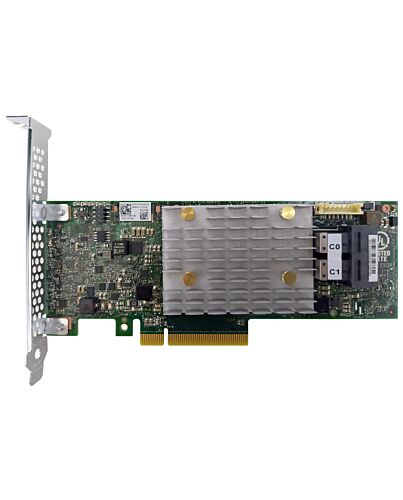

Lenovo 4Y37A72483 RAID controller PCI Express x8 3.0 12 Gbit/s
£1,351.96
Lenovo 4Y37A72483, SAS, Serial ATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 12 Gbit/s, Microchip Luxor ROC PM8204, FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) ...
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Specifications
Ports & interfaces
Supported storage drive interfaces*
SAS, Serial ATA
Host interface*
PCI Express x8
PCI Express slots version
3.0
Performance
RAID levels*
0, 1, 5, 6, 10, 50, 60
RAID Level Migration
Yes
Data transfer rate
12 Gbit/s
SSD support
Yes
Chipset
Microchip Luxor ROC PM8204
JBOD function
Yes
S.M.A.R.T. support
Yes
Number of devices supported
8
Performance
Hot-swap
Yes
Certification
FCC Part 15 Class A
Australia/New Zealand (AS/NZS 3548)
Canada (ICES-003 Class B)
Europe (EN55032/EN55024)
Japan VCCI
Korea KCC
RoHS compliant
EN/IEC/UL 60950
USA (FCC 47 CFR part 15 Subpart B class B)
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
167 mm
Height
64 mm
Additional Information
| EAN/UPC | 889488588015 |
|---|---|
| MPN | 4Y37A72483 |
| BRAND | LENOVO |
