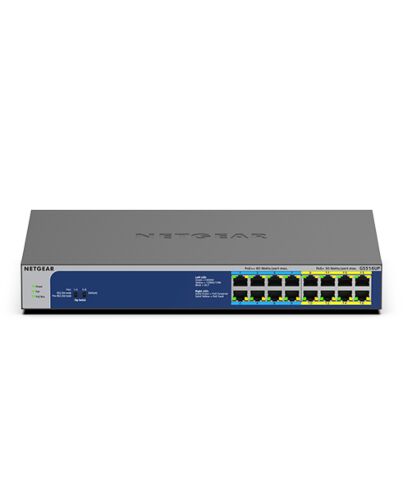

NETGEAR GS516UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£300.46
NETGEAR GS516UP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516UP joins the series and offers 8 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 380W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.
The GS516UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS516UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power.
The GS516UP includes 8 UltraPoE++ ports that can deliver up to 60W of power per port.
PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS516UP solves this problem by providing power to both pre-bt and bt standard devices.
- GS516UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS516UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516UP joins the series and offers 8 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 380W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.
The GS516UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS516UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power.
The GS516UP includes 8 UltraPoE++ ports that can deliver up to 60W of power per port.
PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS516UP solves this problem by providing power to both pre-bt and bt standard devices.
- GS516UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS516UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
Key Features
- PLUG AND PLAY: Simple setup with no software or configuration needed
- POWER-OVER-ETHERNET: large 380W total PoE budget with 8 Ultra60 PoE++ ports and 8 PoE+ ports to power wireless AP, 4K/8K IP Cameras, LED lights, IoT devices, and much more
- COMPACT, FLEXIBLE FORM FACTOR – Small case with internal power supply and whisper-quiet fans, perfect for desktop, wall-mount, or rackmount deployment
- EASY-MONITORING - Per port LEDs for port activity and speed
- GIGABIT ETHERNET – 16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32Gb non-blocking switching
- PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
10G support*
No
Full duplex
Yes
Half duplex
Yes
Auto MDI/MDI-X
Yes
Data transmission
Switching capacity*
32 Gbit/s
MAC address table*
8000 entries
Latency (1 Gbps)
12 µs
Jumbo frames support
Yes
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
0.192 MB
Design
Rack mounting*
Yes
Product colour
Grey
Housing material
Metal
LED indicators
Activity, Link, PoE, Power, Speed
Number of fans
3 fan(s)
Performance
Mean time between failures (MTBF)
1213791 h
Power
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
8 - 4 A
Power consumption (max)
456.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
60 W
Total Power over Ethernet (PoE) budget
380 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
1559.5152 BTU/h
Weight & dimensions
Width
390 mm
Depth
220 mm
Height
43 mm
Weight
2.6 kg
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 606449149746 |
|---|---|
| MPN | GS516UP-100EUS |
| BRAND | Netgear |
