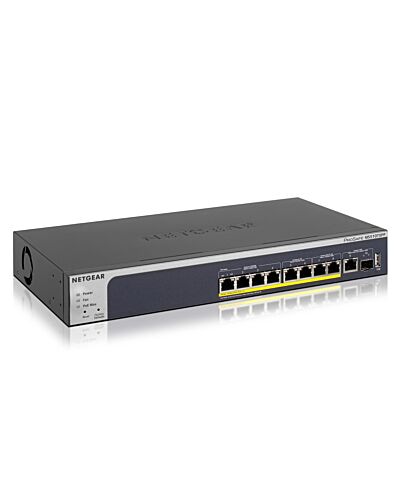

NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

£450.24
NETGEAR MS510TXPP, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE), Rack mounting
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments
Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

That is why NETGEAR launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.

Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.

Specifications

Management features

Switch type*
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity
4
2.5G Ethernet (copper) ports quantity
2
10G Ethernet (copper) ports quantity
1
SFP+ module slots quantity
1
Console port
RJ-45
USB 2.0 ports quantity
1
Power connector
DC-in jack

Network

Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Number of VLANs
256

Data transmission

Switching capacity*
78 Gbit/s
MAC address table*
16000 entries
Latency (10 Gbps)
2.36 µs
Static route
Yes
Number of static routes
32
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
3 MB

Security

DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
Access Control List (ACL) rules
164
IGMP snooping
Yes

Multicast features

Multicast support
Yes
Multicast MAC address table
512 entries

Design

Rack mounting*
Yes
Product colour
Grey
LED indicators
Yes
Number of fans
1 fan(s)
Safety
IEC 60950-1:2005, A1:2009+A2:2013, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, 60950.1:2015, GB4943.1-2011, YD/T993-1998; GB/T9254-2008, CNS 14336-1

Performance

Built-in processor
Yes
Processor frequency
800 MHz
Noise level
28.8 dB
Mean time between failures (MTBF)
376434 h

Power

Power source*
AC
Power supply included*
No
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
19.39 W
Power consumption (max)
234.31 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
180 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
799.5 BTU/h

Weight & dimensions

Width
440 mm
Depth
204 mm
Height
43 mm
Weight
2.61 kg

Certificates

Certification
EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 606449120967
MPN MS510TXPP-100EUS
