Components
Biamp Parlé TCM-1A Pendant
£1,849.84
Biamp Parlé TCM-1A Pendant, Conference microphone, 70 dB, 150 - 16000 Hz, 92 dB, 106 dB, Wired
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Parlé TCM-1A Pendant

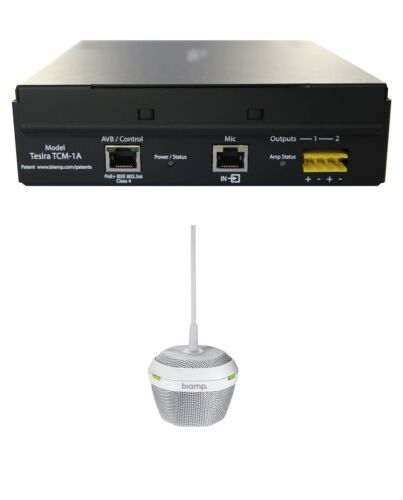

The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst e to handle peak signals.
TCM Coverage Calculator
Amplifier Power Calculator
The Parlé TCM-1A Black & Parlé TCM-1A White complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst e to handle peak signals.
TCM Coverage Calculator
Amplifier Power Calculator
The Parlé TCM-1A Black & Parlé TCM-1A White complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Beamtracking technology actively tracks and intelligently mixes conversations
- Plenum box includes DSP for Beamtracking and a PoE+ amplifier
- Three 120-degree zones for 360 degrees of coverage
- User-adjustable mic height
- Optional tile bridge mounting accessory available
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Specifications
Microphone
Microphone sensitivity
70 dB
Microphone frequency
150 - 16000 Hz
Type*
Conference microphone
Microphone dynamic range
92 dB
Maximum sound pressure level (1kHz)
106 dB
Ports & interfaces
Connectivity technology*
Wired
Device interface*
2-pin
Performance
Product colour*
White
Cable length
3 m
Country of origin
United States
Power
Power source*
DC
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
63 mm
Depth
63 mm
Height
51 mm
Diameter
20 cm
Receiver dimensions (WxDxH)
178 x 181 x 51 mm
Receiver weight
1.1 kg
Packaging data
Package width
203.2 mm
Package depth
304.8 mm
Package height
76.2 mm
Package weight
1.45 kg
Technical details
Compliance certificates
RoHS, Federal Communications Commission (FCC), CE
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8517620050
Additional Information
| EAN/UPC | 814367026449 |
|---|---|
| MPN | 911.0486.900 |
| BRAND | BIAMP |
