Networking

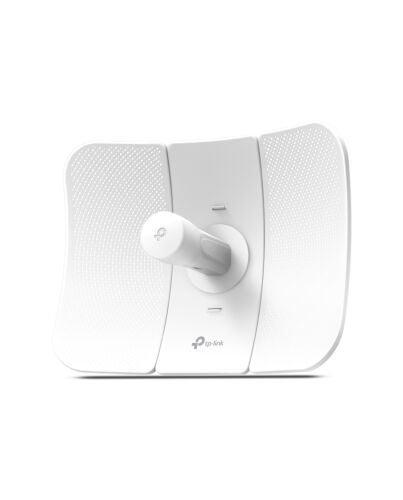

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
£67.04
TP-Link CPE710, 23 dBi, 5.15 - 5.85 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, 23 dBi, 9°, 7°
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Key Features
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Specifications
Performance
Frequency band*
5.15 - 5.85 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Gain
23 dBi
Horizontal beam width
9°
Vertical beam width
7°
Built-in processor
Yes
Processor frequency
750 MHz
Internal memory
128 MB
Flash memory
16 MB
Antenna gain level (max)*
23 dBi
Wi-Fi standards
802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Antenna type*
Directional antenna
Antenna connector type*
PoE/LAN
Product colour
White
Housing material
Plastic
International Protection (IP) code
IP65
LED indicators
Power
Power
Power source type
PoE
Power
Input voltage
24 V
Certificates
Certification
CE, FCC, RoHS, IC
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
366 mm
Depth
280 mm
Height
207 mm
Packaging data
Package type
Box
Packaging content
Cables included
AC
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364053345 |
|---|---|
| MPN | CPE710 |
| BRAND | TP-LINK |
