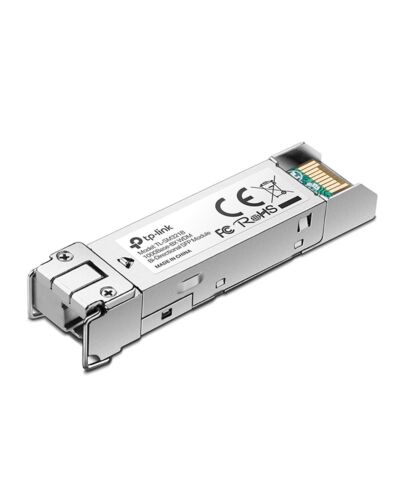

TP-Link 1000Base-BX WDM Bi-Directional SFP Module
£15.70
TP-Link 1000Base-BX WDM Bi-Directional SFP Module, Fiber optic, 1250 Mbit/s, SFP, 9/125 µm, 10000 m, 1550 nm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Spotlight:
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Features
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1310nm / RX: 1550nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321A
- Plug-and-Play
- Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Features
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1310nm / RX: 1550nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321A
- Plug-and-Play
- Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
1250 Mbit/s
Interface type*
SFP
Single-mode fiber (SMF) supported
Yes
Fiber cable diameters supported (core/cladding)
9/125 µm
Maximum transfer distance
10000 m
Tx wavelength (max)
1550 nm
Rx wavelength (max)
1310 nm
Networking standards
IEEE 802.3z
Features
Plug and Play
Yes
Power
Input voltage
3.3 V
Certificates
Certification
FCC, CE
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
55.4 mm
Depth
12.9 mm
Height
12.9 mm
Packaging data
Package width
81.5 mm
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g
Logistics data
Harmonized System (HS) code
85369010
Additional Information
EAN/UPC | 6935364030520 |
---|---|
MPN | SM321B |
BRAND | TP-LINK |
