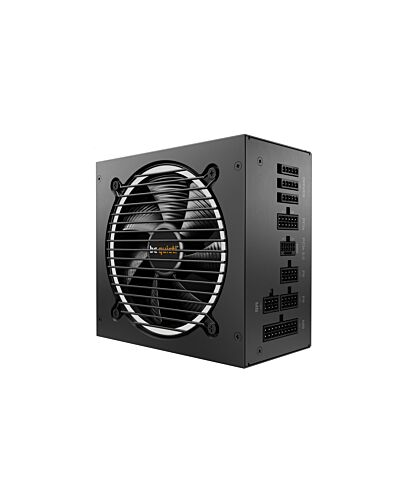

be quiet! Pure Power 12 M power supply unit 650 W 20+4 pin ATX ATX Black
£87.12
be quiet! Pure Power 12 M, 650 W, 100 - 240 V, 720 W, 50 - 60 Hz, 10/5 A, Active
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Pure Power 12 M 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Pure Power 12 M 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Pure Power 12 M 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Key Features
- 80 PLUS® Gold efficiency (up to 92.7%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- Modular cables for maximum build flexibility
- One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for high-end GPUs
- 10-year manufacturer’s warranty
Specifications
Power
Total power*
650 W
Peak power
720 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
10/5 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
650 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V1)
32 A
Max output current (+12V2)
28 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Efficiency
92.7%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
5
Number of PATA power connectors
2
SATA power cable length
500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin)*
1
Peripheral (Molex) power cable length
550 mm
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
2
CPU P4 connector (4-pin)
1
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Performance
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Noise level
19.9 dB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
PATA, PCIe, Peripheral (Molex), SATA
Certificates
Compliance certificates
RoHS
Weight & dimensions
Width
160 mm
Depth
150 mm
Height
86 mm
Packaging data
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Warranty period
10 year(s)
Other features
Screws included
Yes
Number of screws
5
Cable ties included
Yes
Noise level (silent mode, <30%)
8.1 dB
Noise level (quiet mode, 50%)
9.1 dB
Noise level (full-load mode, 100%)
19.9 dB
Additional Information
EAN/UPC | 4260052189474 |
---|---|
MPN | BN342 |
BRAND | BEQUIET |
