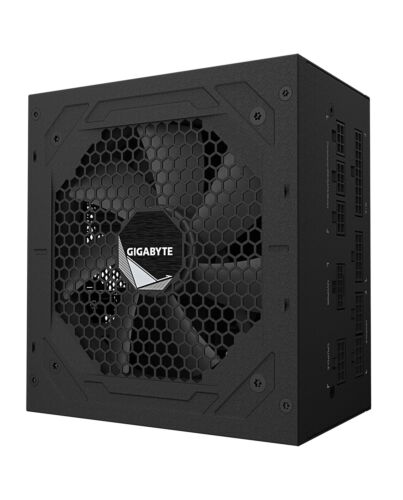

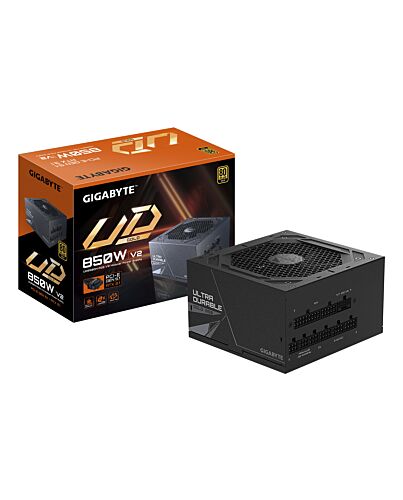

GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
£87.49
GIGABYTE UD850GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 - 6 A, Active, 105 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact size
- 100% Japanese capacitors
- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
12 - 6 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
105 W
Combined power (+12V)
850 W
Combined power (+5V)
105 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16 ms
Efficiency
90%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
8
SATA power cable length
150,600 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
150,500 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
PCI Express power cable length
70 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
Ports & interfaces
Floppy drive power connector
1
PCI Express connector
Yes
Number of EPS connectors
2
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
HYB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2.4 kg
Packaging data
Package width
618 mm
Package depth
269 mm
Package height
211 mm
Package weight
2.56 kg
Package type
Box
Logistics data
Warranty period
10 year(s)
Additional Information
| EAN/UPC | 4719331553166 |
|---|---|
| MPN | GP-UD850GM PG5 V2 |
