Networking Equipments

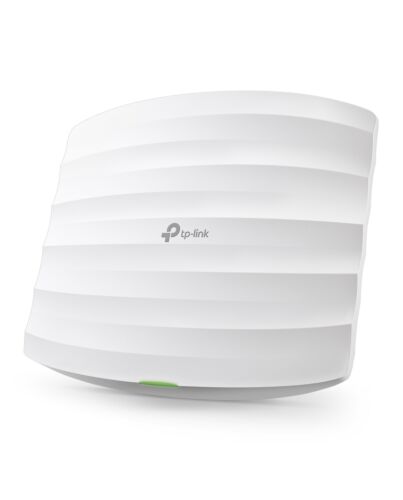

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
£42.14
TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Key Features
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
Specifications
Features
2.4 GHz*
Yes
5 GHz*
No
6 GHz*
No
Maximum data transfer rate*
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100Base-T(X)
Automatic channel selection
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Wireless isolation
Yes
Quality of Service (QoS) support
Yes
Transmitting power (CE)
19 dBm
Transmitting power (FCC)
21 dBm
Receiver sensitivity
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
8
System status alarm
Yes
Access Control List (ACL)
Yes
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
WAN connection
Ethernet (RJ-45), Wi-Fi
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Output voltage
12 V
Output current
1 A
Power consumption (typical)
5 W
Design
Placement*
Ceiling, Wall
Product colour*
White
Design
Cable lock slot
Yes
Cable lock slot type
Kensington
On/off switch
Yes
Reset button
Yes
LED indicators
Yes
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antennas quantity
2
Antenna gain level (max)
3 dBi
Performance
Minimum system requirements
Microsoft Windows 10/8/7/Vista/XP
Certificates
Compliance certificates
Federal Communications Commission (FCC), CE, RoHS
Certification
CE, FCC, RoHS
Weight & dimensions
Width
180 mm
Depth
180 mm
Height
47.5 mm
Packaging data
Package width
246 mm
Package depth
268 mm
Package height
69 mm
Package weight
600 g
Packaging content
Quantity per pack
1 pc(s)
PoE adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364096946 |
|---|---|
| MPN | EAP115 |
