Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm
£191.40
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

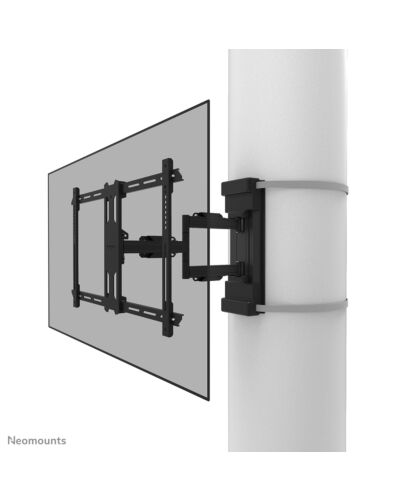

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.
The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.
The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.
The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifications
Mounting
Maximum weight capacity*
45 kg
Minimum screen size
101.6 cm (40")
Number of displays supported*
1
Maximum screen size*
177.8 cm (70")
Minimum VESA mount*
200 x 100 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
200 x 100,600 x 400 mm
Mounting type*
Pole
Ergonomics
Adjustable depth
Yes
Tilt adjustment
Yes
Tilt angle range
-2 - 12°
Swivelling
Yes
Swivel angle range
-45 - 45°
Rotating
Yes
Angle of rotation
6°
Pivot angle
-3 - 3°
Cable management
Yes
Type
Full motion
Distance to the wall (max)
59 cm
Distance to the wall (min)
8.2 cm
Design
Product colour*
Black
Housing material
Steel
Technical details
Country of origin
China
Package net weight
11.1 kg
Compatible pole diameter (min)
25 cm
Compatible pole diameter (max)
100 cm
Technical details
Warranty period
5 year(s)
Lockable
Not lockable
Packaging content
Mounting kit
Yes
Weight & dimensions
Width
710 mm
Depth
590 mm
Depth (min)
8.2 cm
Depth (max)
59 cm
Height
520 mm
Weight
9.5 kg
Packaging data
Package width
386 mm
Package depth
95 mm
Package height
744 mm
Package weight
11.1 kg
Logistics data
Master (outer) case width
205 mm
Master (outer) case length
406 mm
Master (outer) case height
764 mm
Master (outer) case gross weight
22.8 kg
Master (outer) case net weight
19 kg
Products per master (outer) case
2 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
34 pc(s)
Other features
Depth adjustment range
82 - 590 mm
Additional Information
| EAN/UPC | 8717371449544 |
|---|---|
| MPN | WL40S-910BL16 |
