Neomounts DS70-450BL1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop
£141.78
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

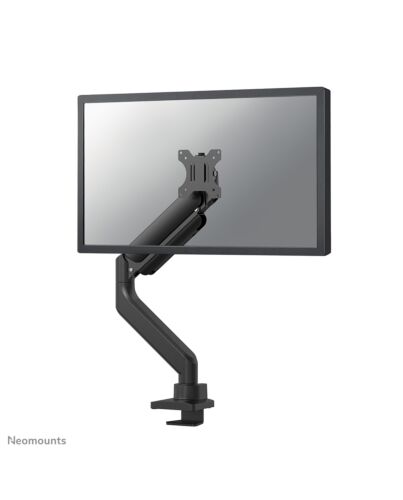

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.
The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
Specifications
Mounting
Maximum weight capacity*
15 kg
Minimum screen size*
43.2 cm (17")
Number of displays supported*
1
Maximum weight capacity (per curved/ultra-wide display)
11 kg
Maximum screen size*
106.7 cm (42")
Mounting
Clamp/Grommet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
100 x 100 mm
Panel mounting interface
75 x 75,100 x 100 mm
Desk thickness (min)
1 cm
Desk thickness (max)
4.5 cm
Distance to the wall (min)
10.8 cm
Distance to the wall (max)
56.8 cm
Ergonomics
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
261 - 555 mm
Adjustable depth
Yes
Depth adjustment range
54 - 511 mm
Tilt adjustment
Yes
Tilt angle range
-45 - 45°
Swivelling
Yes
Swivel angle
180°
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Cable management
Yes
Design
Housing material
Steel
Product colour*
Black
Weight & dimensions
Width
120 mm
Depth
568 mm
Height
653 mm
Weight
3.98 kg
Packaging data
Package width
280 mm
Package depth
127 mm
Package height
445 mm
Package net weight
5.4 kg
Package weight
5.1 kg
Packaging content
Mounting kit
Yes
Other features
Minimum weight
1 kg
Width adjustment range
0 - 920 mm
Warranty period
5 year(s)
Technical details
Doesn't contain
Plastic
Logistics data
Master (outer) case width
460 mm
Master (outer) case length
275 mm
Master (outer) case height
580 mm
Master (outer) case gross weight
20.5 kg
Products per master (outer) case
4 pc(s)
Country of origin
China
Master (outer) case net weight
18.4 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
64 pc(s)
Additional Information
| EAN/UPC | 8717371449469 |
|---|---|
| MPN | DS70-450BL1 |
| BRAND | NEOMOUNTS |
