Neomounts WL30S-910BL16 TV pillar mount 40-75" - fixed - lockable - diam. 25-100 cm - portrait
£159.41
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

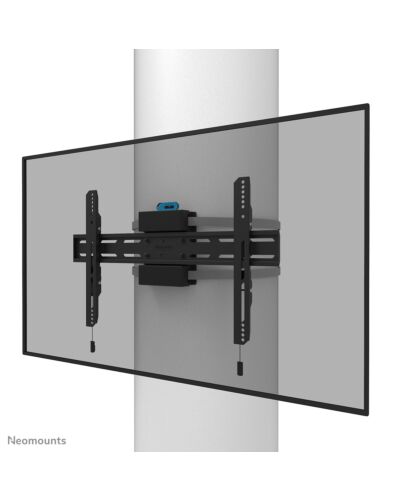

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.
The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifications
Mounting
Maximum weight capacity*
50 kg
Minimum screen size
101.6 cm (40")
Number of displays supported*
1
Maximum screen size*
190.5 cm (75")
Minimum VESA mount*
200 x 100 mm
Maximum VESA mount*
600 x 400 mm
Panel mounting interface
400 x 400,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200
Mounting type*
Pole
Ergonomics
Angle of rotation
6°
Pivot angle
-3 - 3°
Cable management
No
Type
Fixed
Distance to the wall (max)
6.7 cm
Design
Product colour*
Black
Housing material
Steel
Accepts padlock
Yes
Technical details
Country of origin
China
Package net weight
5.3 kg
Compatible pole diameter (min)
25 cm
Compatible pole diameter (max)
100 cm
Technical details
Warranty period
5 year(s)
Lockable
Security screw included
Weight & dimensions
Width
684 mm
Depth
67 mm
Height
425 mm
Weight
4.2 kg
Packaging data
Package width
238 mm
Package depth
74 mm
Package height
900 mm
Package weight
5.3 kg
Logistics data
Master (outer) case width
315 mm
Master (outer) case length
258 mm
Master (outer) case height
920 mm
Master (outer) case gross weight
21.7 kg
Master (outer) case net weight
16.8 kg
Products per master (outer) case
4 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
48 pc(s)
Additional Information
| EAN/UPC | 8717371449520 |
|---|---|
| MPN | WL30S-910BL16 |
| BRAND | NEOMOUNTS |
