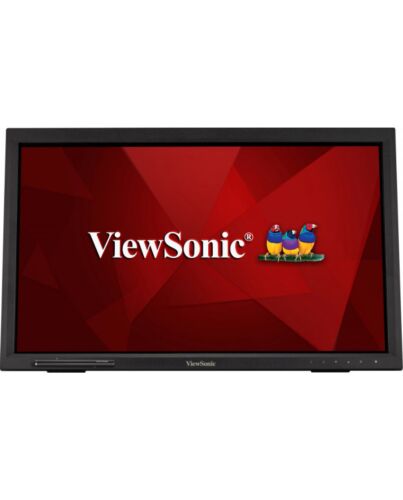

Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
£192.85
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Key Features
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
Specifications
Display
Display diagonal*
54.6 cm (21.5")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LED
Panel type*
TN
Touchscreen*
Yes
Touchscreen type
Multi-user
Touchscreen technology
Infrared
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness
250 cd/m²
Response time*
5 ms
Screen shape*
Flat
Contrast ratio (typical)*
1000:1
Contrast ratio (dynamic)
20000000:1
Maximum refresh rate*
75 Hz
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours*
16.78 million colours
Pixel pitch
0.248 x 0.248 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 75 Hz
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)*
Yes
Built-in microphone
No
Built-in camera*
No
Design
Product colour*
Black
Glass thickness
2 mm
Ports & interfaces
Built-in USB hub*
Yes
USB upstream port type
USB Type-B
Number of upstream ports
1
USB Type-A downstream ports quantity
2
VGA (D-Sub) ports quantity
1
DVI port
Yes
DVI-D ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
HDMI version
1.4
Headphone out*
Yes
Ports & interfaces
Headphone outputs
1
Microphone in
Yes
Ergonomics
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable lock slot*
Yes
Cable lock slot type
Kensington
Tilt adjustment
Yes
Tilt angle range
22 - 38°
Power
Energy efficiency class (SDR)*
E
Energy consumption (SDR) per 1000 hours*
14 kWh
Power consumption (typical)*
12.5 W
Power consumption (standby)*
0.5 W
Power consumption (max)
14 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
European Product Registry for Energy Labelling (EPREL) code
368718
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width (with stand)
521 mm
Depth (with stand)
101 mm
Height (with stand)
334 mm
Weight (with stand)
4.5 kg
Width (without stand)
521 mm
Depth (without stand)
61 mm
Height (without stand)
318 mm
Weight (without stand)
3.9 kg
Packaging data
Package width
580 mm
Package depth
164 mm
Package height
405 mm
Package weight
6 kg
Packaging content
Stand included
Yes
Cables included
AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Sustainability
Sustainability certificates
ENERGY STAR
Other features
Compliance certificates
REACH, RoHS
Certification
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Logistics data
Harmonized System (HS) code
85285210
Additional Information
EAN/UPC | 766907008647 |
---|---|
MPN | TD2223 |
BRAND | VIEWSONIC |
