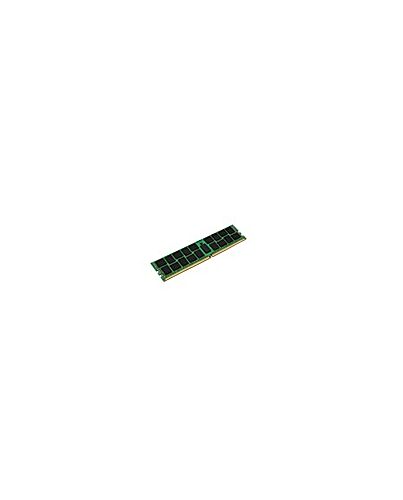

Kingston Technology KSM32RD4/32HDR memory module 32 GB 1 x 32 GB DDR4 ECC
£111.61
Kingston Technology KSM32RD4/32HDR, 32 GB, 1 x 32 GB, DDR4, 288-pin DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Kingston's KSM32RD4/32HDR is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx4, ECC, memory module, based on thirty-six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key Features
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
- the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
Specifications
Features
CAS latency
22
Internal memory*
32 GB
Memory layout (modules x size)*
1 x 32 GB
Internal memory type*
DDR4
Component for*
PC/Server
Memory form factor*
288-pin DIMM
ECC*
Yes
Memory voltage
1.2 V
Features
Country of origin
Taiwan
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617308099 |
|---|---|
| MPN | KSM32RD4/32HDR |
| BRAND | KINGSTON VRAM |
