Components

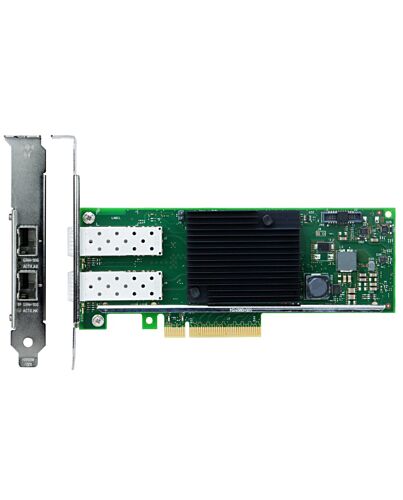

Lenovo 7ZT7A00537 network card Internal Fiber 10000 Mbit/s
£433.51
Lenovo 7ZT7A00537, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s, Black, Green
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems.
Key Features
- VXLAN/NVGRE Hardware Offloads: These stateless offloads preserve application performance for overlay networks. With these offloads, it is possible to distribute network traffic across CPU cores. At the same time, X710 offloads LSO, GSO, and checksum f the host software, which reduces CPU overhead
- Mobile and cloud application acceleration: Intel’s Data Plan Development Kit (DPDK) delivers an open driver where users can fine-tune small packet performance, which delivers line-rate at 128 byte, and near line-rate at 64 byte
- Low latency: Intel Ethernet Flow Director delivers hardware-based application steering and Intel Data Direct I/O makes the processor cache the primary destination and source of I/O data rather than main memory. Combined, latency is reduced and Intel reports a three-fold improvement in RPS
- Virtualization performance: With Intel Virtualization Technology (VT), the X710 family of adapters delivers outstanding I/O performance in virtualized server environments. These adapters reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), which enables near-line rate speeds for small packets and supports almost an unlimited amount of lated traffic flows so that you can scale your cloud environment
- Next-generation VMDq: The X710 adapters support up to 256 VMDq VMs and offer enhanced Quality of Service (QoS) feature by providing weighted round-robin servicing for the Tx data. The adapters offload the data-sorting functionality f the hypervr to the network silicon, which improves data throughput and CPU usage
- PCI-SIG SR-IOV implementation: Provides an implementation of the PCI-SIG standard for I/O Virtualization. The physical configuration of each port is divided into multiple virtual ports. Each virtual port is assigned to an individual VM directly by ing the virtual switch in the Hypervr, which results in near-native performance
- VM load balancing: Provides traffic load balancing (Tx and Rx) across VMs that are bound to the team interface. It also provides fault tolerance if a switch, port, cable, or adapter fails
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
PCI Express
Interface*
Fiber
Fiber ports quantity
2
Fiber optic connector
SFP+
Network
Maximum data transfer rate*
10000 Mbit/s
Networking standards*
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3x
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Jumbo frames
9728
VLAN tagging
Yes
iSCSI support
Yes
Design
Component for*
Server
Product colour
Black, Green
Internal*
Yes
Certification
EN55022
EN55024
EN 61000-3-2
EN 61000-3-3
ICES-003, Issue-004
FCC 47 CFR Part 15 Class A
VCCI
AS/NZS CISPR 22 / C-tick
RRL for KC
BSMI
UL 94 V-1
System requirements
Compatible operating systems
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE Linux Enterprise Server 11 for AMD64/EM64T
SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 12 with XEN
VMware vSphere 5.5 (ESXi)
VMware vSphere 6.0 (ESXi)
VMware vSphere 6.5 (ESXi)
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 80%
Operating altitude
0 - 2134 m
Weight & dimensions
Width
15 mm
Depth
167 mm
Height
69 mm
Packaging data
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
85176990
Other features
Flow control support
Yes
Intel® Virtualization Technology (Intel® VT)
Yes
Intel Virtual Machine Device Queues (VMDq)
Yes
Intelligent Offloads
Yes
Intel Data Direct I/O Technology
Yes
Receive Side Scaling (RSS)
Yes
Additional Information
| EAN/UPC | 889488433803 |
|---|---|
| MPN | 7ZT7A00537 |
| BRAND | LENOVO |
