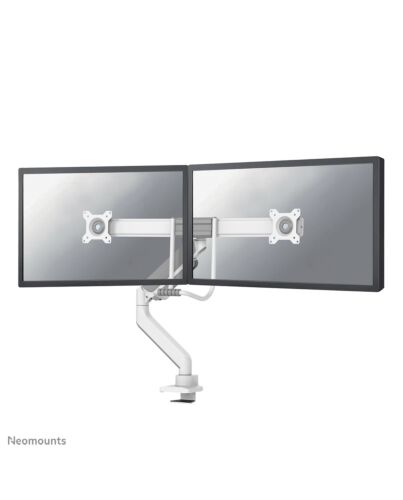

Neomounts DS75-450WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
£171.22
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifications
Mounting
Minimum screen size*
43.2 cm (17")
Number of displays supported*
2
Maximum weight capacity (per display)*
8 kg
Maximum screen size*
81.3 cm (32")
Mounting
Clamp/Grommet
Mounting type*
Desk
Minimum VESA mount*
75 x 75 mm
Maximum VESA mount*
100 x 100 mm
Panel mounting interface
75 x 75 mm
Desk thickness (min)
1 cm
Desk thickness (max)
4.5 cm
Ergonomics
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
0 - 280 mm
Adjustable depth
Yes
Depth adjustment range
0 - 680 mm
Tilt adjustment
Yes
Tilt angle range
-10 - 10°
Swivelling
Yes
Swivel angle
20°
Swivel angle range
-90 - 90°
Rotating
Yes
Angle of rotation
360°
Pivot angle
-180 - 180°
Cable management
Yes
Design
Housing material
Steel
Product colour*
White
Weight & dimensions
Width
853 mm
Depth
115 mm
Height
646 mm
Weight
6.4 kg
Packaging data
Package width
320 mm
Package depth
152 mm
Package height
445 mm
Package net weight
7.9 kg
Package weight
7.9 kg
Packaging content
Mounting kit
Yes
Other features
Minimum weight
1 kg
Width adjustment range
0 - 540 mm
Warranty period
5 year(s)
Logistics data
Master (outer) case width
335 mm
Master (outer) case length
325 mm
Master (outer) case height
460 mm
Master (outer) case gross weight
15.9 kg
Products per master (outer) case
2 pc(s)
Country of origin
China
Master (outer) case net weight
14.3 kg
Harmonized System (HS) code
7326909890
Products per pallet (EU)
40 pc(s)
Additional Information
| EAN/UPC | 8717371449490 |
|---|---|
| MPN | DS75-450WH2 |
| BRAND | NEOMOUNTS |
