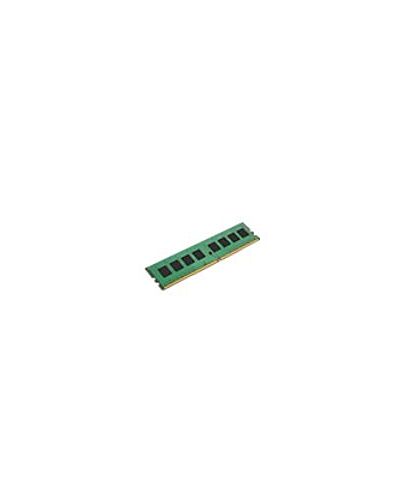

Kingston Technology ValueRAM memory ule 8 GB 1 x 8 GB DDR4 3200 MT/s 288-pin DIMM
£97.96
Kingston Technology ValueRAM , 8 GB, 1 x 8 GB, DDR4, 288-pin DIMM
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This document describes ValueRAM's KVR32N22S6/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory ule, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory*
8 GB
Memory layout (ules x size)*
1 x 8 GB
Internal memory type*
DDR4
Memory data transfer rate*
3200 MT/s
Component for*
PC/Server
Memory form factor*
288-pin DIMM
ECC*
No
Memory voltage
1.2 V
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
SPD profile
Yes
Features
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617310870 |
|---|---|
| MPN | KVR32N22S6/8 |
| BRAND | KINGSTON |
