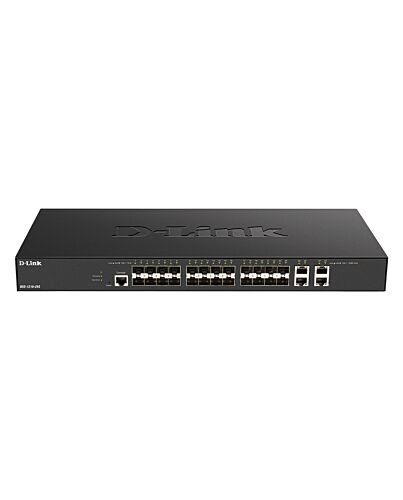

D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch
£944.33
D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Key Features
- Access Control List
- IP-MAC-Port Binding
- Clientless MAC/Web Access Control
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
4
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity
4
SFP+ ule slots quantity
24
Console port
RJ-45
Network
Networking standards*
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support*
Yes
Cable types supported
Cat6, Cat6a, Cat7
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4094
Data transmission
Switching capacity*
560 Gbit/s
Throughput
416.64 Mpps
MAC address table*
32000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Security
Access Control List (ACL)
Yes
Access Control List (ACL) rules
256
IGMP snooping
Yes
Protocols
Management protocols
SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Rack mounting*
Yes
Stackable*
No
Form factor
1U
Product colour
Black
LED indicators
Activity, Link, Speed
Number of fans
2 fan(s)
Power
AC input voltage
100 - 240 V
Power consumption (max)
85.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
441 mm
Depth
209.5 mm
Height
44 mm
Weight
3.27 kg
Packaging content
Manual
Yes
Certificates
Certification
CE Class A
FCC Class A
VCCI Class A
IC
BSMI
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 790069456817 |
|---|---|
| MPN | DXS-1210-28S |
| BRAND | D-Link |
