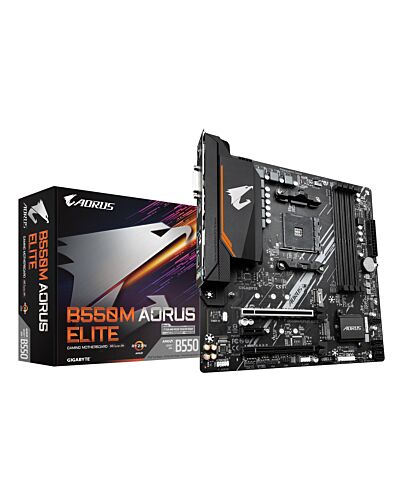

GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1x
£80.41
GIGABYTE B550M AORUS ELITE Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- tek GbE LAN with Bandwidth Management
- Rear HDMI & DVI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Reasons To Buy
RGB Fusion 2.0 Software
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. F motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming e makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.Q-Flash Plus
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)
4733 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
32 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Serial port headers
1
12V power connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
5
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
HDMI version
2.1
DVI-D ports quantity*
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
Network
Ethernet LAN
Yes
Network
Ethernet interface type
Gigabit Ethernet
LAN controller
tek RTL8111H
Wi-Fi*
No
Features
Motherboard chipset*
AMD B550
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Brown
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
3.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Harmonized System (HS) code
84733020
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
265 mm
Package depth
265 mm
Package height
65 mm
Package weight
1.27 kg
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331809546 |
|---|---|
| MPN | B550M AORUS ELITE |
| BRAND | Gigabyte |
