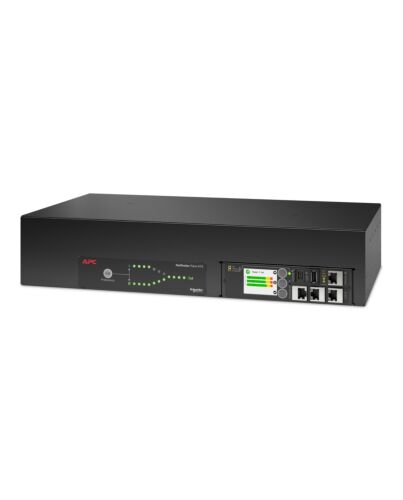

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
£1,229.92
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Specifications
Power
Input operation voltage (min)*
207 V
Input operation voltage (max)*
253 V
AC input frequency
50 - 60 Hz
Input current
32 A
Output current
32 A
Design
Form factor*
Rackmount
Rack capacity
2U
Product colour
Black
Certification
EN 55022 class A, FCC part 15 class A
Ports & interfaces
AC outlets quantity
18 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Total carbon footprint (kg of CO2e)
794.41
Weight & dimensions
Width
432 mm
Depth
236 mm
Height
88 mm
Weight
6.94 kg
Additional Information
| EAN/UPC | 731304432456 |
|---|---|
| MPN | AP4424A |
