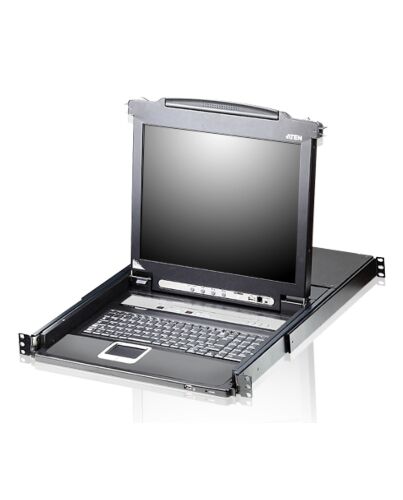

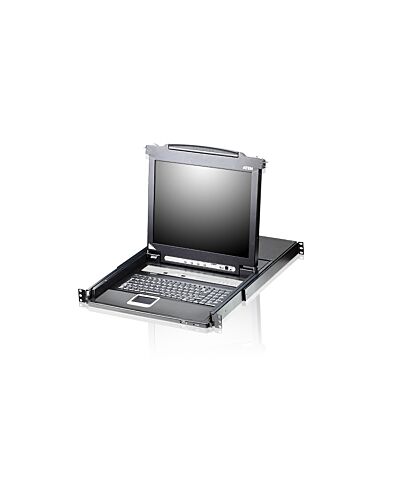

ATEN 8-Port 17" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
£1,078.43
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Key Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- USB port allows each computer to access USB peripherals
Specifications
Display
Display diagonal
43.2 cm (17")
Display
LCD
On Screen Display (OSD)
Yes
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1280 x 1024 pixels
Rack mounting
Yes
Number of computers controlled
8
LED indicators
Yes
Rack capacity
1U
Ports & interfaces
Keyboard port type
PS/2
Mouse port type
USB
Video port type
VGA
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Power
Power consumption (typical)
16 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
642.7 mm
Height
44 mm
Depth
480 mm
Weight
13.5 kg
Packaging data
Package weight
16.8 kg
Package width
668 mm
Package depth
718 mm
Package height
135 mm
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
13.7 kg
Master (outer) case width
668 mm
Master (outer) case length
718 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
16.8 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642449 |
|---|---|
| MPN | CL5708M |
