TP-Link 14-Slot Rackmount Chassis
£196.01
TP-Link 14-Slot Rackmount Chassis, 100-240V, 50 - 60 Hz, 9.5 V, 0 - 40 °C, -40 - 70 °C, 10 - 90%
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does

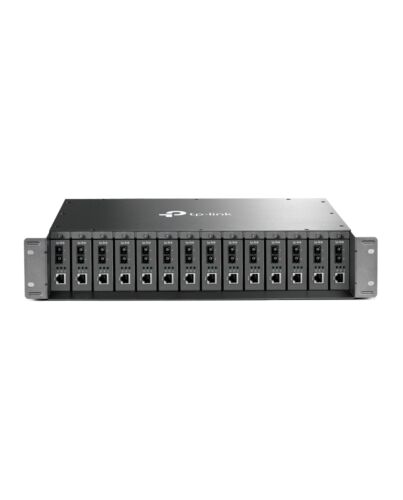

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.
The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.
Key Features
- 14 bays to house up to 14 media converters
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-Swappable; easy & quick replacement of converter and power supply
- Mounted two cooling fans for better ventilation
Specifications
Technical details
Rack capacity
2U
Dimensions (WxDxH)
482 x 358 x 86 mm
Size (imperial)
48.3 cm (19")
Ports quantity
14
Number of fans
2 fan(s)
Power
Power requirements
100-240V
AC input frequency
50 - 60 Hz
AC adapter output voltage
9.5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operational conditions
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
482 mm
Depth
309 mm
Height
86 mm
Weight
8 kg
Packaging data
Package width
585 mm
Package depth
455 mm
Package height
170 mm
Package weight
6.7 kg
Additional Information
| EAN/UPC | 6935364070281 |
|---|---|
| MPN | MC1400 |
