Networking Equipments

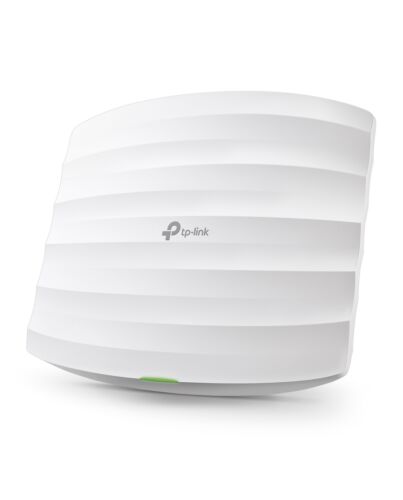

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
£111.40
TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point, 2.4 GHz, 5 GHz, 1300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA-Enterprise, WPA-PSK,..., 10,100,1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Advanced Performance in High-Density Environments
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
AC1750 Dual-Band Speed
1300 Mbps on 5 GHz Band + 450 Mbps on 2.4 GHz Band†
High-Density Connectivity
MU-MIMO + Professional Antennas
Centralised Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Seamless Roaming
Supports 802.11k/v for Signal Auto Transition
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
AC1750 Dual-Band Speed
1300 Mbps on 5 GHz Band + 450 Mbps on 2.4 GHz Band†
High-Density Connectivity
MU-MIMO + Professional Antennas
Centralised Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Seamless Roaming
Supports 802.11k/v for Signal Auto Transition
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Key Features
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1300 Mbit/s
Maximum data transfer rate (2.4 GHz)
450 Mbit/s
Maximum data transfer rate (5 GHz)
1300 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users
500 user(s)
Automatic channel selection
Yes
Automatic channel scanning
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Quality of Service (QoS) support
Yes
Transmitting power (CE)
20/23 dBm
Transmitting power (FCC)
24 dBm
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Ports & interfaces
WAN connection
Ethernet (RJ-45)
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
DC voltage range
12 V
Design
Placement*
Ceiling, Wall
Product colour*
White
Reset button
Yes
LED indicators
Yes
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
4 dBi
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Certificates
Certification
CE, FCC, RoHS
Weight & dimensions
Width
205.5 mm
Depth
181.5 mm
Height
37.1 mm
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Additional Information
| EAN/UPC | 6935364030735 |
|---|---|
| MPN | EAP265 HD |
| BRAND | TP-LINK |
