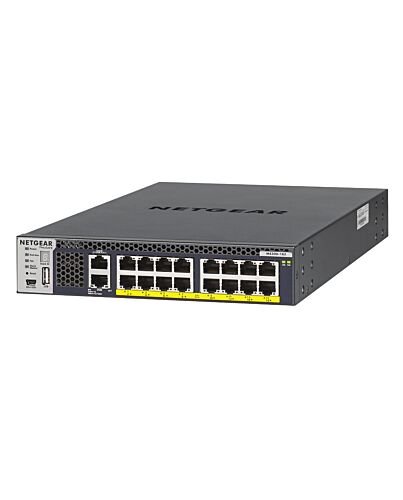

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
£2,623.79
NETGEAR M4300-16X, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Key Features
- 16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
- 320Gbps non-blocking fabric across 16 ports
- Out-of-band 1G Ethernet management port
- Mini-USB and RJ45 RS232 console ports and USB storage port
- Full L3 feature set and non-stop forwarding (NSF) stacking
- Half-width form factor with one- and two-unit rack mount kit
- Two half-width switches can be installed in a single rack space for redundant top-of-rack
- Ships with one modular APS600W PSU in its power supply slot
- Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )
Specifications
Management features
Switch type*
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
Console port
RJ-45/Mini-USB
USB 2.0 ports quantity
1
Network
Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support*
Yes
Port mirroring
Yes
IP routing
Yes
Link aggregation
Yes
Auto-sensing
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4093
Data transmission
Switching capacity*
320 Gbit/s
Throughput
238 Mpps
MAC address table*
16000 entries
Store-and-forward
Yes
Number of queues
8
Number of static routes
64
Jumbo frames support
Yes
Jumbo frames
9000
Security
DHCP features
DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication
Multicast features
Multicast support
Yes
Number of multicast groups filtered
4000
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Routing protocols
OSPF, OSPFv3, RIP, RIP-1, RIP-2
Design
Rack mounting*
Yes
Stackable*
Yes
Form factor
1U
Product colour
Black
Airflow direction
Front-to-back airflow
Performance
Physical stacking (units)
8
Built-in processor
Yes
Processor frequency
800 MHz
Internal memory
1024 MB
Noise level
35 dB
Mean time between failures (MTBF)
690301 h
Power
Power supply included*
Yes
Number of power supply units
1
Power consumption (max)
610 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
500 W
Operational conditions
Heat dissipation
2081.64 BTU/h
Weight & dimensions
Width
212 mm
Depth
345 mm
Height
44 mm
Weight
3.22 kg
Packaging content
Rack mount kit
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 606449140989 |
|---|---|
| MPN | XSM4316PB-100NES |
| BRAND | Netgear |
