Components

APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensor

£193.92

APC Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts, Black, REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3,..., 0 - 40 °C, -15 - 65 °C, 121 mm, 114 mm

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

This product is EOL and replaced by the AP9614

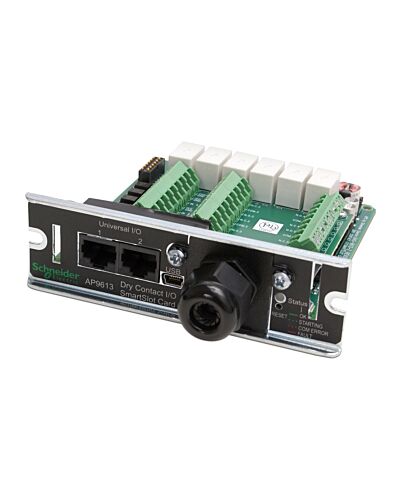

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

Specifications

Features

Product colour

Black

Ports & interfaces

Ethernet LAN (RJ-45) ports

Certificates

Certification

REACH RoHS EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC 15 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 65 °C

Weight & dimensions

Width

121 mm

Depth

114 mm

Height

38 mm

Weight

210 g

Logistics data

Harmonized System (HS) code

85079080

Total carbon footprint (kg of CO2e)

282.46

Additional Information

More Information
EAN/UPC	731304293842
MPN	AP9613
BRAND	APC
