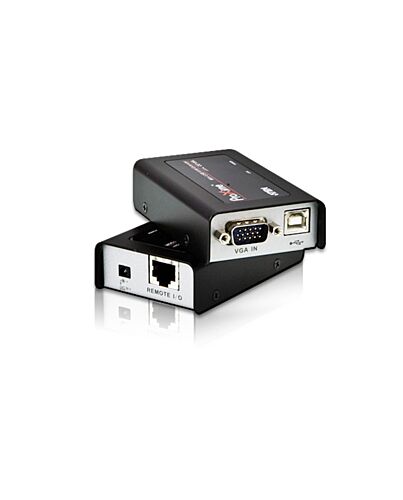

ATEN MINI USB VGA KVM Extender (100m)
£153.30
ATEN MINI USB VGA KVM Extender (100m), Transmitter & receiver, Wired, 100 m, Cat5, 1920 x 1200 pixels, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x LIN5-21X1-X27G USB/VGA Cable (1.8m)
1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x LIN5-21X1-X27G USB/VGA Cable (1.8m)
1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
Key Features
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
100 m
Cable types supported
Cat5
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
Material
Metal
LED indicators
Link, Power
Ports & interfaces
USB port type
USB Type-B/ USB Type-A
USB 2.0 ports quantity
3
RJ-45 ports quantity
2
Weight & dimensions
Transmitter width
5.74 cm
Transmitter depth
9.1 cm
Transmitter height
2.4 cm
Transmitter weight
170 g
Receiver width
5.74 cm
Receiver depth
9.1 cm
Receiver height
2.4 cm
Receiver weight
170 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
745 g
Packaging content
Cables included
USB, VGA
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Technical details
Weight
603 g
Logistics data
Master (outer) case net weight
12.1 kg
Harmonized System (HS) code
84733080
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
15 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710423773462 |
|---|---|
| MPN | CE100 |
| BRAND | ATEN |
