Data Input Devices

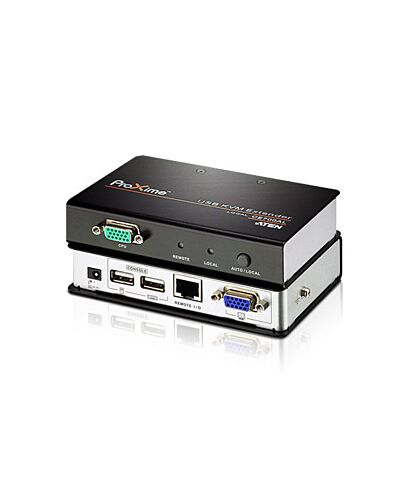

ATEN USB VGA KVM Extender (150m)
£191.39
ATEN USB VGA KVM Extender (150m), Transmitter & receiver, Wired, 150 m, Cat5e, 1920 x 1200, 1600 x 1200, 1280 x 1024, Black, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x 0AD6-1605-09EG Power Adapters
1x USB KVM Cable (1.8m)
1x Mounting Kit
1x User Instructions
1x CE700AL USB KVM Extender (Local Unit)
1x CE700AR USB KVM Extender (Remote Unit)
2x 0AD6-1605-09EG Power Adapters
1x USB KVM Cable (1.8m)
1x Mounting Kit
1x User Instructions
Key Features
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
150 m
Cable types supported
Cat5e
Rack mounting
Yes
Supported resolutions
1920 x 1200, 1600 x 1200, 1280 x 1024
Product colour
Black, Grey
Material
Metal
LED indicators
Link, Power
Transmitter
Transmitter video port type
VGA
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local video port type
VGA
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Power
AC adapter output voltage
5.3 V
Weight & dimensions
Transmitter width
12.7 cm
Transmitter depth
8.65 cm
Transmitter height
2.5 cm
Transmitter weight
330 g
Receiver width
12.7 cm
Receiver depth
8.14 cm
Weight & dimensions
Receiver height
2.5 cm
Receiver weight
320 g
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.41 kg
Packaging content
Manual
Yes
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Technical details
Weight
1.14 kg
Logistics data
Master (outer) case net weight
5.67 kg
Harmonized System (HS) code
84733080
Master (outer) case width
300 mm
Master (outer) case length
336 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
6.86 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4710423776593 |
|---|---|
| MPN | CE700A |
| BRAND | ATEN |
