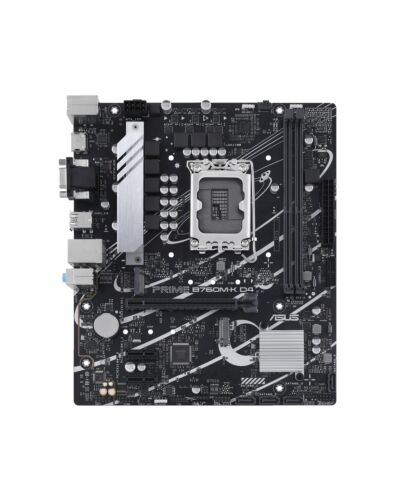

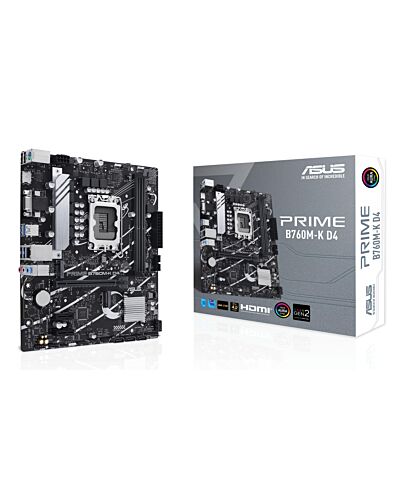

ASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX
£86.50
ASUS PRIME B760M-K D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Supported memory clock speed (max)
5333 MHz
Maximum internal memory*
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Rear panel I/O ports
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
Microphone in
Yes
USB connector type
USB Type-A
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wake-on-LAN ready
Yes
Wi-Fi*
No
Features
Motherboard chipset*
Intel B760
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
Packaging data
Package width
270 mm
Package depth
51.5 mm
Package height
263 mm
Package weight
926.3 g
Weight & dimensions
Width
244 mm
Depth
211 mm
Height
36 mm
Packaging content
Cables included
SATA
Other features
Weight
528 g
Additional Information
| EAN/UPC | 4711387006917 |
|---|---|
| MPN | 90MB1DS0-M1EAY0 |
| BRAND | ASUS |
