Components

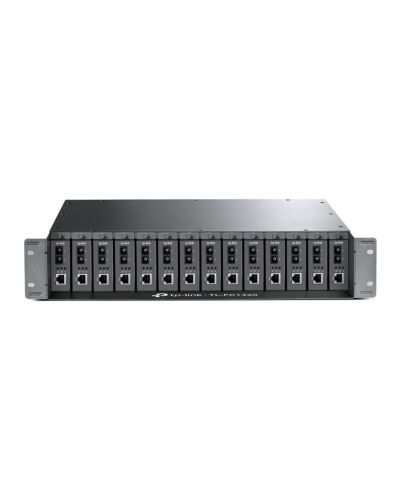

TP-Link 14-Slot Media Converter Chassis
£168.52
TP-Link 14-Slot Media Converter Chassis, 100 - 240 V, 50 - 60 Hz, 5 V, 0.6 A, 0 - 50 °C, -40 - 70 °C
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TL-FC1420 14-Slot Rackmount Chassis is specially designed to accomate 14 TP-Link's Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with FC series Gigabit / Fast Ethernet media converters, TL-FC1420 is the ideal solution for your media conversion network.
Specifications
Technical details
Rack mounting
Yes
Rack capacity*
2U
Dimensions (WxDxH)
482 x 309 x 86 mm
Size (imperial)
48.3 cm (19")
Product colour
Black
Number of fans
2 fan(s)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output voltage
5 V
Output current
0.6 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
482 mm
Depth
309 mm
Height
86 mm
Packaging data
Package width
455 mm
Package depth
585 mm
Package height
170 mm
Package weight
5.98 kg
Additional Information
| EAN/UPC | 6935364010461 |
|---|---|
| MPN | FC1420 |
| BRAND | TP-LINK |
