TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
£69.84
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does

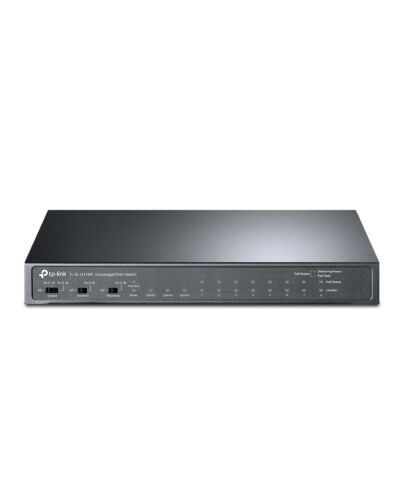

TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8× 10/100Mbps ports and 3× Gigabit ports that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Long-Range PoE Transmission and One-Click Traffic Separation
With Extend Mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance.
Intelligent Power Management
When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on.
TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8× 10/100Mbps ports and 3× Gigabit ports that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Long-Range PoE Transmission and One-Click Traffic Separation
With Extend Mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm for higher security and performance.
Intelligent Power Management
When total power consumption exceeds 124 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in their locations. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on.
Key Features
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 124 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Specifications
Management features
Switch type*
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
10
Basic switching RJ-45 Ethernet ports type*
Fast Ethernet (10/100)
SFP module slots quantity
1
Power connector
DC-in jack
Network
Networking standards*
IEEE 802.3af, IEEE 802.3at
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
Switching capacity*
7.6 Gbit/s
Forwarding rate
5.6544 Mpps
MAC address table*
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
16000
Design
Rack mounting*
No
Product colour
Black
Number of fans
0 fan(s)
Power
Power supply included*
Yes
Number of power supply units
1
DC input voltage
53.5 V
Input current
2.43 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
124 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Manual
Yes
Packaging data
Package type
Box
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364006266 |
|---|---|
| MPN | TL-SL1311MP |
| BRAND | TP-LINK |
