Networking Equipments

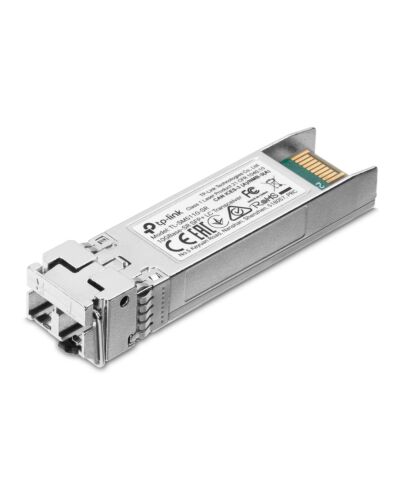

TP-Link 10GBase-SR SFP+ LC Transceiver
£26.54
TP-Link 10GBase-SR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), 50/125,62.5/125 µm, 300 m
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Key Features
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
Specifications
Performance
SFP transceiver type*
Fiber optic
Maximum data transfer rate*
10000 Mbit/s
Interface type*
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC (UPC)
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Maximum transfer distance
300 m
Wavelength
850 nm
Digital Diagnostics Monitoring (DDM)
Yes
Features
Product colour
Silver
Hot-swap
Yes
Power
Input voltage
3.3 V
Certificates
Certification
FCC, CE
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
14.5 mm
Depth
61.3 mm
Height
12.2 mm
Packaging data
Package width
81.5 mm
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g
Logistics data
Harmonized System (HS) code
85369010
Additional Information
| EAN/UPC | 6935364006303 |
|---|---|
| MPN | SM5110-SR |
| BRAND | TP-LINK |
