TP-Link Gigabit Multi-Mode Media Converter
£29.98
TP-Link Gigabit Multi-Mode Media Converter, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s, 550 m, 850 nm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km

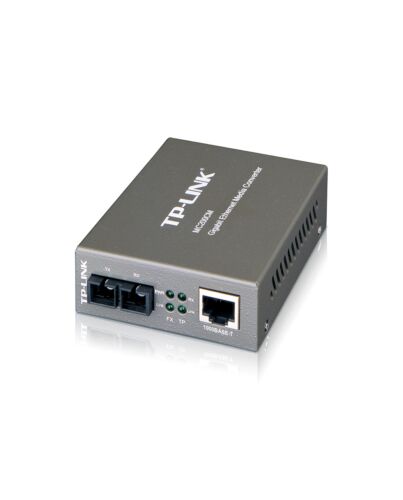

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
1000 Mbit/s
Auto MDI/MDI-X
Yes
Performance
Maximum transfer distance*
550 m
Wavelength*
850 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Features
Internal*
No
LED indicators
Link
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SC
DC-in jack
Yes
Power
Power consumption (max)
5.5 W
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
204 mm
Package depth
165 mm
Package height
65 mm
Certificates
Compliance certificates
RoHS
Certification
FCC, CE
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364081331 |
|---|---|
| MPN | MC200CM |
| BRAND | TP-LINK |
