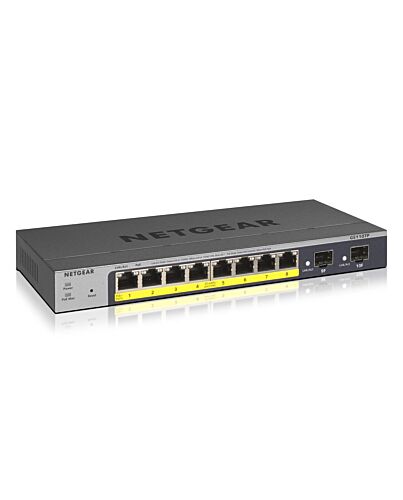

NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

£137.89
NETGEAR GS110TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.

Key Features

  • 8-port switches
  • Managed switches
  • Smart managed pro switches
  • Gigabit Ethernet switches
  • PoE switches
  • PoE+ switches
  • Cloud managed switches

Specifications

Management features

Switch type*
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
2

Network

Networking standards*
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
MAC address auto-learning supported
Yes
Number of VLANs
64

Data transmission

Switching capacity*
20 Gbit/s
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Packet buffer memory
0.5 MB

Security

DHCP features
DHCP client
Access Control List (ACL)
Yes
Access Control List (ACL) IPv6 entries
100
IGMP snooping
Yes
Security algorithms
802.1x RADIUS
MAC address filtering
Yes

Multicast features

Multicast support
Yes
IPv4 multicast entries
32
Number of multicast groups filtered
256

Protocols

Management protocols
SNMP
Switching protocols
SNMP
Data link protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Supported network protocols
HTTP, HTTPS

Design

Rack mounting*
No
Product colour
Grey
LED indicators
Activity, LAN, Link, PoE, Power, Speed

Performance

Processor frequency
500 MHz
Memory type
RAM
Internal memory
128 MB
Flash memory
32 MB
Mean time between failures (MTBF)
1200041 h

Power

Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
54 V
Input current
1.25 A
Power consumption (max)
15.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
55 W
Total Power over Ethernet (PoE) budget
69.5 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
237.38 BTU/h

Weight & dimensions

Width
236 mm
Depth
101 mm
Height
27 mm
Weight
610 g

Packaging content

Manual
Yes

Packaging data

Package type
Box
Package width
161 mm
Package depth
267 mm
Package height
86 mm
Package weight
1.49 kg

Certificates

Certification
CE, FCC, VCCI Class B, C-Tick

Logistics data

Master (outer) case width
274 mm
Master (outer) case length
350 mm
Master (outer) case height
309 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
9.73 kg
Products per master (outer) case
6 pc(s)

Additional Information

More Information
EAN/UPC 606449137644
MPN GS110TP-300EUS
BRAND Netgear
