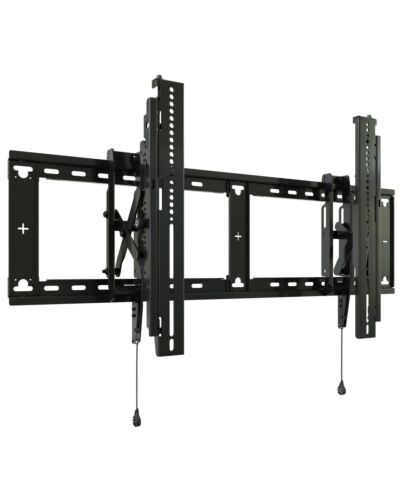

Chief RLXT3 TV mount/stand 2.16 m (85") Black
£79.20
Chief RLXT3, 109.2 cm (43"), 2.16 m (85"), 68 kg, 863 x 450 mm, -10 - 10°, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Fit series RLXT3 is a large extending tilt display wall mount for 43” to 85” typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67” (68 mm) depth up to 6” (152 mm) when fully extended away f the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.
Key Features
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Display can be tilted 10° forward or back to set the optimal viewing angle – especially useful for large screens
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 863 x 450 mm
- Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent locking option to secure the screen in place with padlock or steel cable (not included)
- UL and TUV safety standards approved
Specifications
Mounting
Maximum weight capacity*
68 kg
Minimum screen size
109.2 cm (43")
Number of displays supported*
1
Maximum screen size*
2.16 m (85")
Maximum VESA mount*
863 x 450 mm
Mounting type*
Wall
Ergonomics
Height adjustment
Yes
Height adjustment type
Manual
Tilt adjustment
Yes
Tilt angle range
-10 - 10°
Design
Product colour*
Black
Weight & dimensions
Width
965 mm
Depth (min)
6.8 cm
Depth (max)
6.8 cm
Height
487 mm
Packaging data
Quantity per pack
1 pair(s)
Package weight
9.6 kg
Additional Information
| EAN/UPC | 841872176659 |
|---|---|
| MPN | RLXT3 |
| BRAND | Chief |
