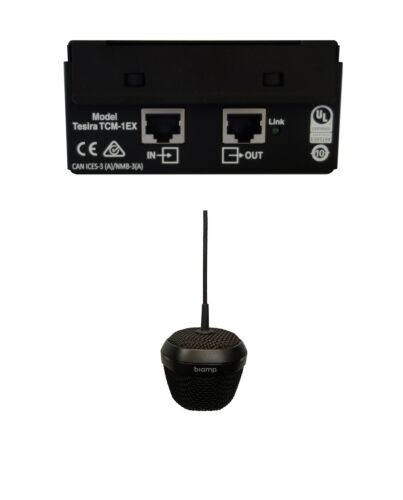

Biamp Parlé TCM-1EX Black Conference microphone
£790.16
Biamp Parlé TCM-1EX, Conference microphone, 70 dB, 150 - 16000 Hz, 92 dB, 106 dB, Wired
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Parlé TCM-1EX Pendant
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
The Parlé TCM-1EX Black & Parlé TCM-1EX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
The Parlé TCM-1EX Black & Parlé TCM-1EX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Must be used with a Parlé TCM-1 or TCM-1A microphone
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Microphone
Microphone sensitivity
70 dB
Microphone frequency
150 - 16000 Hz
Type*
Conference microphone
Microphone dynamic range
92 dB
Maximum sound pressure level (1kHz)
106 dB
Ports & interfaces
Connectivity technology*
Wired
Device interface*
2-pin
Performance
Product colour*
Black
Cable length
3 m
Country of origin
United States
Power
Power source*
DC
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
63 mm
Depth
63 mm
Height
51 mm
Microphone weight
200 g
Receiver dimensions (WxDxH)
102 x 133 x 51 mm
Receiver weight
400 g
Packaging data
Package width
177.8 mm
Package depth
203.2 mm
Package height
76.2 mm
Package weight
720 g
Technical details
Compliance certificates
RoHS, Federal Communications Commission (FCC), CE
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518100000
Additional Information
| EAN/UPC | 814367026524 |
|---|---|
| MPN | 911.0494.900 |
| BRAND | BIAMP |
