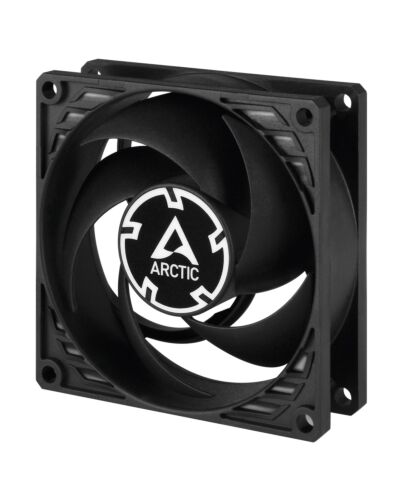

ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST

Name: ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST
Brand: ARCTIC
SKU: MAZ-0000002112
Price: 3.38 GBP
Availability: InStock

Be the first to review this product

£3.38

ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST, Fan, 8 cm, 200 RPM, 3000 RPM, 0.3 sone, 40.3 m³/h

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

Not only that we at ARCTIC free the IT world f noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Reasons To Buy

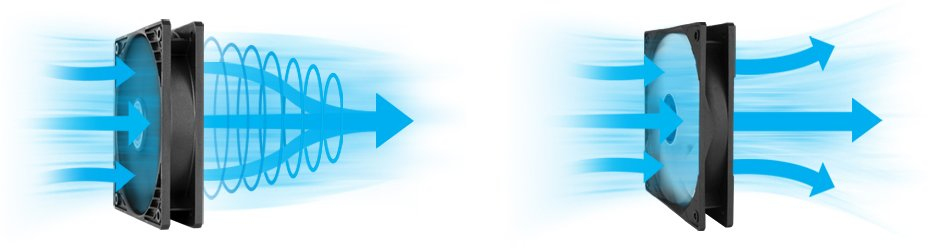

Optimised for Static Pressure

During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.

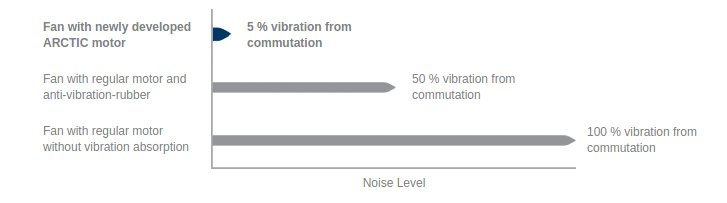

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration f commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

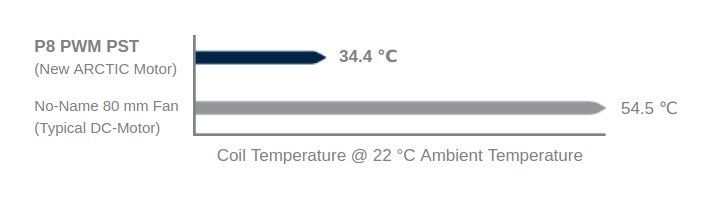

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

200 to 3000 RPM regulated via PWM PST

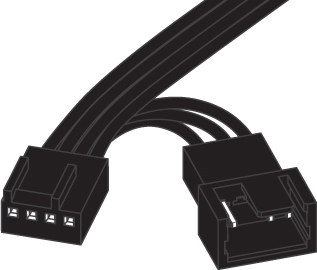

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.
In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

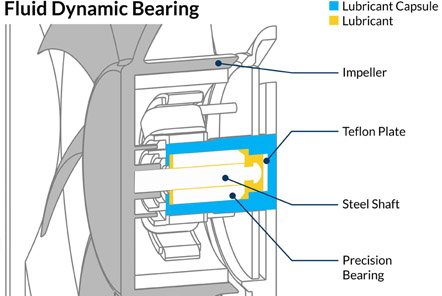

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life f your fan.

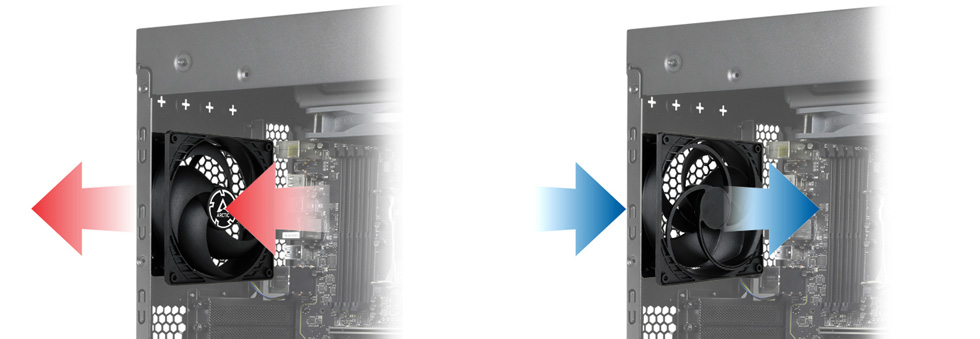

Two Way Installation

Push warm air out of the case
Pull cool air into your case

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

8 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (min)

200 RPM

Rotational speed (max)

3000 RPM

Noise level

0.3 sone

Maximum airflow

23.4 cfm

Airflow

40.3 m³/h

Maximum air pressure

1.9 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Design

Product colour*

Black

Number of fans

1 fan(s)

Number of fan blades

Fan connector

4-pin

Power

Voltage

12 V

Weight & dimensions

Width

80 mm

Depth

25 mm

Height

80 mm

Weight

81 g

Cable length

0.4 m

Package width

82.5 mm

Package depth

26 mm

Package height

82.5 mm

Package weight

99 g

Packaging content

Package type

Box

Screws included

Yes

Number of screws

Manual

Yes

Other features

Mounting hole pattern (W x D)

71.5 x 71.5 mm

Country of origin

China

Additional Information

More Information
EAN/UPC	4895213702034
MPN	ACFAN00150A
BRAND	ARCTIC
