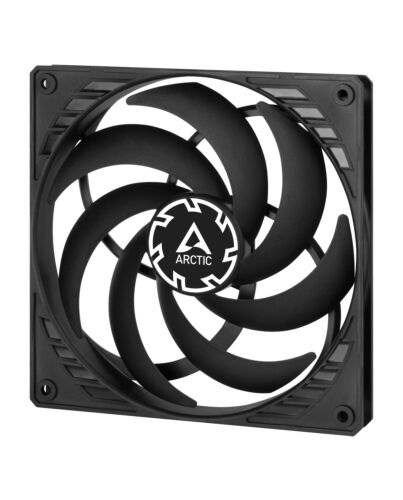

ARCTIC P14 Slim PWM PST Pressure-optimised 140 mm PWM Fan with integrated Y-cable

Name: ARCTIC P14 Slim PWM PST Pressure-optimised 140 mm PWM Fan with integrated Y-cable
Brand: ARCTIC
SKU: MAZ-0000002011
Price: 3.94 GBP
Availability: InStock

Be the first to review this product

£3.94

ARCTIC P14 Slim PWM PST Pressure-optimised 140 mm PWM Fan with integrated Y-cable, Fan, 14 cm, 150 RPM, 1800 RPM, 0.3 sone, 88.35 m³/h

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes f 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

Reasons To Buy

IDEAL FOR SMALL SPACES

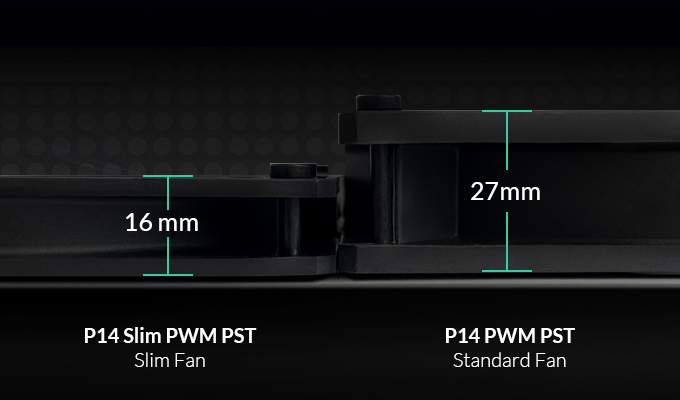

Unlike standard 140 mm case fans with a thickness of 27 mm, the P14 Slim PWM PST has a mounting depth of only 16 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

OPTIMISED FOR HIGH STATIC PRESSURE

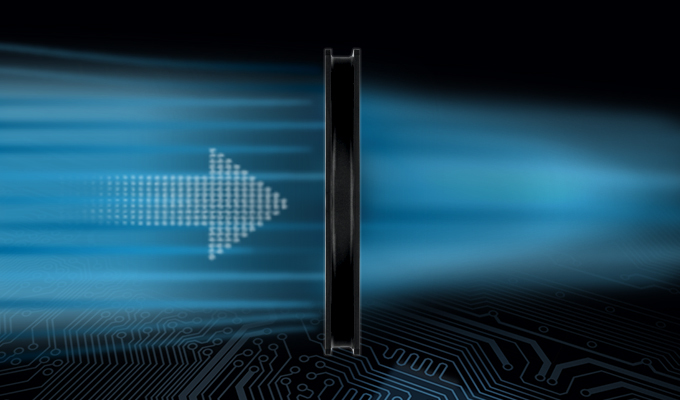

Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

MAXIMUM QUIETNESS, MINIMUM VIBRATION

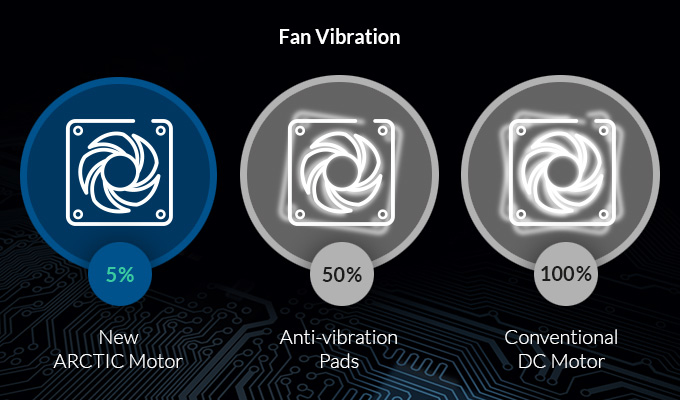

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

IMPROVED SERVICE LIFE

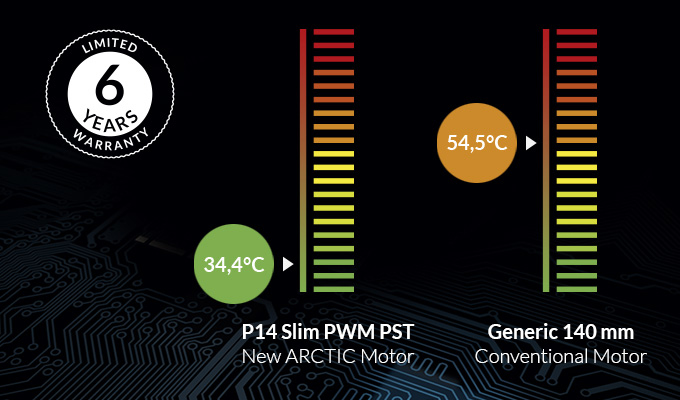

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor els. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

150 TO 1800 RPM CONTROLLED VIA PWM PST

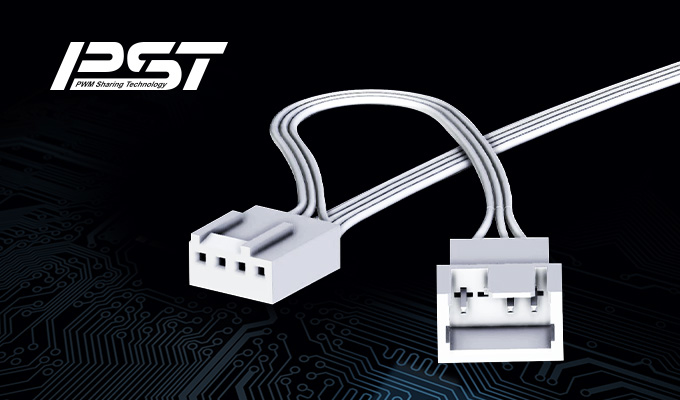

With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series.

HIGH QUALITY SLEEVE BEARING

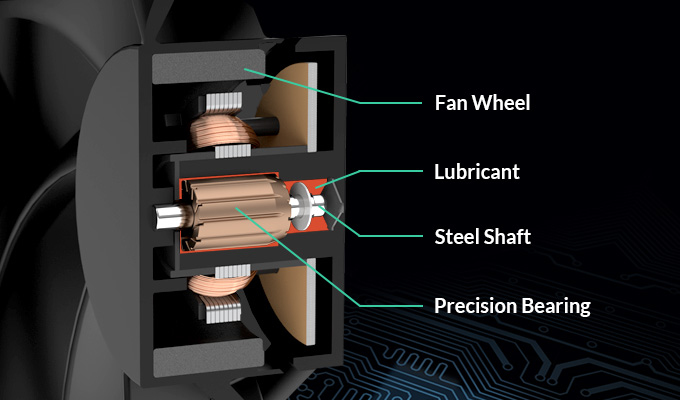

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

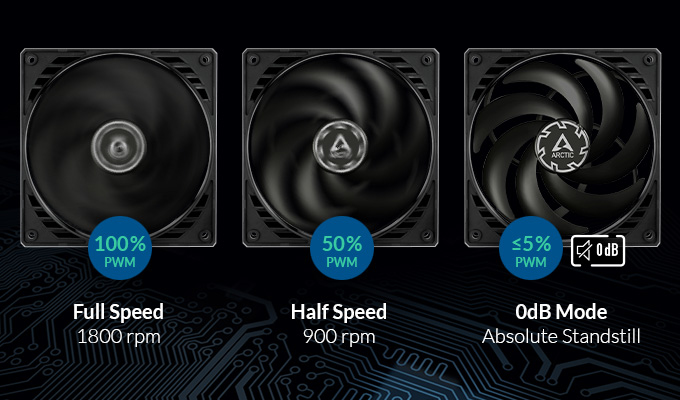

0 DB E - ZERO RPM

The speed of the P14 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.

VERSATILE USE

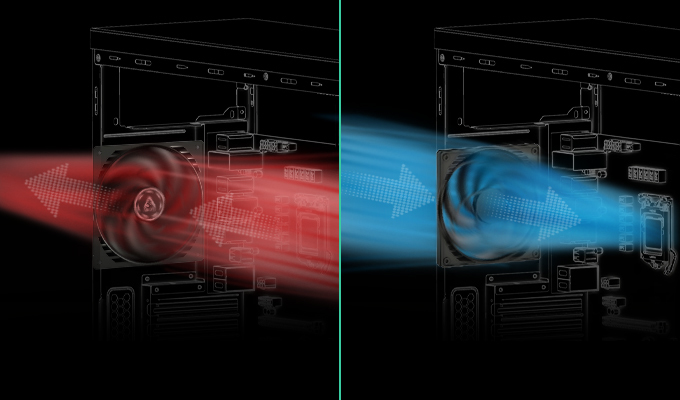

The P14 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

14 cm

Rotational speed (min)

150 RPM

Rotational speed (max)

1800 RPM

Noise level

0.3 sone

Maximum airflow

52 cfm

Airflow

88.35 m³/h

Maximum air pressure

1.55 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Fan connector

4-pin + 4-pin

Power

Voltage

12 V

Power

Starting voltage

4 V

Fan current

0.19 A

Weight & dimensions

Weight

109 g

Fan dimensions (W x D x H)

140 x 140 x 16 mm

Fan weight

109 g

Cable length

0.48 m

Package width

143 mm

Package depth

156 mm

Package height

17 mm

Packaging content

Screws included

Yes

Number of screws

Other features

Country of origin

China

Logistics data

Harmonized System (HS) code

84733080

Additional Information

More Information
EAN/UPC	4895213703871
MPN	ACFAN00268A
BRAND	ARCTIC
