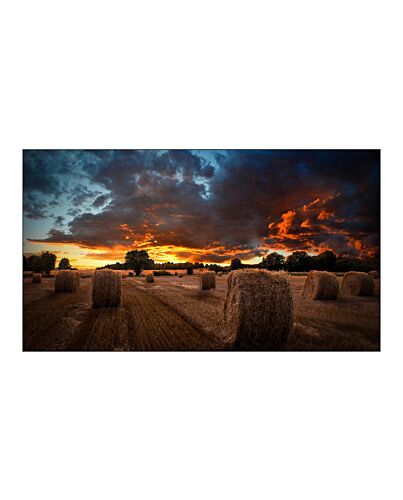

Samsung VM46B-U LCD Indoor
£1,200.00
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Display
Display technology*
LCD
Display diagonal
116.8 cm (46")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Panel type
IPS
Aspect ratio
16:9
Pixel pitch*
0.53 x 0.53 mm
Display brightness*
500 cd/m²
Pixel frequency
82 MHz
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
45000:1
Response time
0.008 s
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Horizontal scan range
62.7 - 72.3 kHz
Vertical scan range
57 - 63 Hz
Operating hours (hours/days)
24/7
Design
Placement supported*
Indoor
Orientation*
Horizontal/Vertical
Bezel width (side)
1.25 mm
Bezel width (top)
2.25 mm
Bezel width (bottom)
2.25 mm
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Product colour
Black
Panel colour
Black
Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
DVI port
Yes
DisplayPorts quantity
1
DisplayPort version
1.2
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ports & interfaces
RS-232 input ports
1
RS-232 output ports
1
RS-232C
Yes
USB port
Yes
USB ports quantity
1
HDCP
Yes
HDCP version
2.2
IR input ports quantity
1
Audio input
Yes
Audio output
Yes
Power
Power consumption (typical)*
160 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
128 kWh
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Logistics data
Harmonized System (HS) code
85285210
Sustainability
Certification
FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017VCCI (Japan) : VCCI CISPR32:2016 Class BKCC/EK (Korea) : Tuner : KN13 / KN20Tunerless : KN22 / KN24BSMI (Taiwan) : CNS13438 ( ITE EMI ) Class A / CNS14336-1 ( ITE Safety ) / CNS15663 (RoHS)C-Tick (Australia) : AS/NZS CISPR32:2015CCC(China) :GB/T9254-2008, GB17625.1-2012GOST(Russia/CIS) : ROCT CISPR 24-2013/ROCT CISPR 22:2005
Weight & dimensions
Width
1022 mm
Depth
69.9 mm
Height
577 mm
Weight
15.7 kg
Packaging data
Package width
1193 mm
Package depth
257 mm
Package height
719 mm
Package weight
22.2 kg
Additional Information
| EAN/UPC | 8806094366082 |
|---|---|
| MPN | LH46VMBUBGBXEN |
| BRAND | Samsung |
