Components

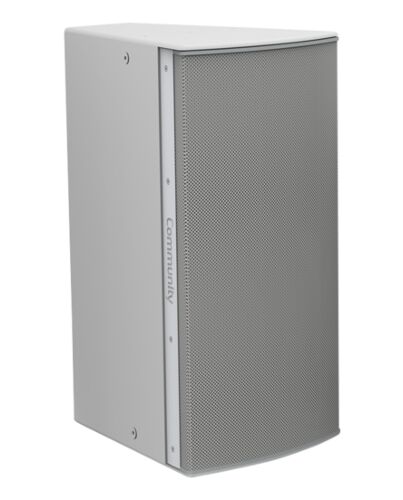

Biamp Community IP8-1122/96W 2-way Grey Wired 800 W
£2,607.00
Biamp Community IP8-1122/96W, 2-way, Wired, 800 W, 44 - 22400 Hz, 8 Ω, Grey
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The IP8-1122 is a high power, 12-inch, two-way, point source loudspeaker. The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single amp or biamp operating es expand application flexibility. FEA-optimized linear suspensions, high-flux neodymium motors, and integral deulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced midrange in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source. I SERIES Point Source 800 loudspeakers provide exemplary acoustic performance, ular flexibility and elegant aesthetics for ern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of ular bracket systems that accelerate system design and system commissioning.
Key Features
- 90° H x 60° V dispersion
- Indoor installation, white finish
- High-flux, linear neodymium motors with deulation rings for very low distortion
- Exceptional sound quality and clarity at very high output levels
- Lightweight and compact with deep LF extension
- Large rotatable waveguide with individually voiced crossover, single-amp/bi-amp selectable
- Innovative low profile ular bracket systems create elegant arrays with simplified installation
Specifications
Loudspeakers
Speaker type*
2-way
Speaker placement*
Floor, Stand-mountable, Wall-mountable
Speaker enclosure
Closed
Number of drivers*
2
Tweeter
Yes
Number of tweeter drivers
1
Tweeter diameter
2.5 cm
Tweeter diameter (imperial)
2.54 cm (1")
Woofer
Yes
Number of woofer drivers
1
Woofer diameter (imperial)
30.5 cm (12")
Audio
RMS rated power*
800 W
Peak Music Power Output (PMPO)
3200 W
Frequency range
44 - 22400 Hz
Impedance
8 Ω
Sensitivity
95 dB
Performance
Market segment*
Consumer
Number of speakers*
1
Product colour*
Grey
Suitable for indoor use
Yes
Performance
Suggested gender
Boy/Girl
Recommended age group
Adult
International Protection (IP) code
IP55
Suitable for outdoor use
Yes
Ports & interfaces
Connectivity technology*
Wired
Weight & dimensions
Width
368 mm
Depth
450 mm
Height
711 mm
Weight
24.9 kg
Packaging data
Package width
438.2 mm
Package depth
517.7 mm
Package height
806.5 mm
Package weight
29 kg
Packaging content
Quantity per pack
1 pc(s)
Technical details
Warranty period
5 year(s)
Compliance certificates
Trade Agreements Act (TAA)
Additional Information
| EAN/UPC | 617174030964. |
|---|---|
| MPN | 911.1080.900 |
| BRAND | BIAMP |
