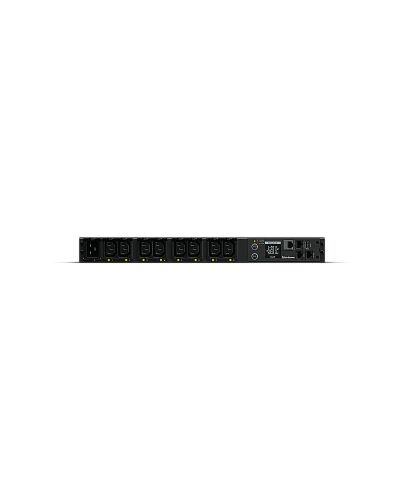

CyberPower PDU41005 power distribution unit (PDU) 8 AC outlet(s) 1U Black
£373.03
CyberPower PDU41005, Managed, Switched, 1U, Single-phase, Horizontal, Steel, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CyberPower PDU41005 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
Key Features
- Real-Time Local/Remote Monitoring and Switching
- Controllable Receptacles with Power Sequencing
- User Configurable Color LCD
- Digital Real-time Load Display
- Firmware Upgrade via USB
- PowerPanel® Management Software
Specifications
Design
PDU types*
Managed, Switched
Type
Single-phase
Rack capacity*
1U
Mounting
Horizontal
Housing material
Steel
Product colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity*
8 AC outlet(s)
Power plug
C20 coupler
AC outlet types*
C13 coupler
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
4
USB ports quantity
1
Features
Daisy chain
Yes
LED indicators
Yes
Cable length
3.05 m
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSL/TLS
Management features
Supported network protocols
IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable
Yes
Firmware upgradeable via
USB
Power
Nominal input voltage*
100 - 240 V
AC input frequency
50 / 60 Hz
Maximum current*
16 A
Nominal output voltage
100 - 240 V
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UL
Certification
FCC Class A, UL60950, UL62368, EN 55032 Class A
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3500 m
Non-operating altitude
0 - 15000 m
Operating temperature (T-T)
32 - 140 °F
Weight & dimensions
Width
433 mm
Depth
112 mm
Height
44 mm
Weight
2.1 kg
Packaging content
Bundled software
PowerPanel Business, PowerPanel Enterprise
Packaging content
PDU41005, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable
Packaging data
Package weight
3.9 kg
Package width
500 mm
Package depth
250 mm
Package height
65 mm
Additional Information
EAN/UPC | 4712856276695 |
---|---|
MPN | PDU41005 |
