  • CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Components

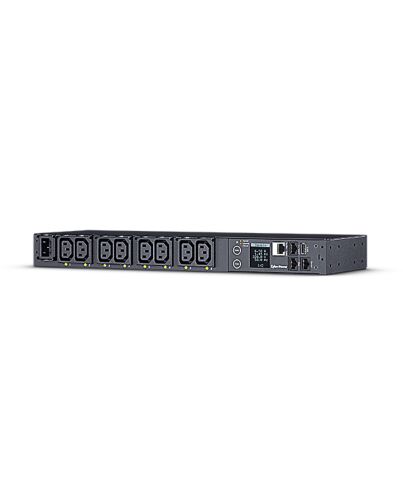

CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black

£347.32
CyberPower PDU41004, Managed, Switched, 1U, Single-phase, Horizontal, Steel, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

CyberPower PDU41004 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.

The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.

Key Features

  • Real-Time Local/Remote Monitoring and Switching
  • User Configurable Color LCD
  • Firmware Upgrade via USB
  • Sequential Outlet ON/OFF Control
  • Digital Real-time Load Display

Specifications

Design

PDU types*
Managed, Switched
Type
Single-phase
Rack capacity*
1U
Mounting
Horizontal
Housing material
Steel
Product colour
Black
Display
LCD

Ports & interfaces

AC outlets quantity*
8 AC outlet(s)
Power plug
C14 coupler
AC outlet types*
C13 coupler
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
4
USB ports quantity
1

Features

Daisy chain
Yes
LED indicators
Link, Status
Cable length
3.05 m
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSL/TLS

Management features

Supported network protocols
IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
Firmware upgradeable
Yes
Firmware upgradeable via
USB

Power

Nominal input voltage*
100 - 240 V
AC input frequency
50 / 60 Hz
Maximum current*
12 A
Nominal output voltage
100 - 240 V

Certificates

Compliance certificates
RoHS
Certification
FCC Class A, UL60950, UL62368, EN 55032 Class A

Sustainability

Sustainability compliance
Yes

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-15 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3500 m
Non-operating altitude
0 - 15000 m
Operating temperature (T-T)
32 - 140 °F

Weight & dimensions

Width
433 mm
Depth
112 mm
Height
44 mm
Weight
2.1 kg

Packaging content

Bundled software
PowerPanel Business, PowerPanel Enterprise
Packaging content
PDU41004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable

Packaging data

Package weight
3.9 kg
Package width
500 mm
Package depth
250 mm
Package height
65 mm

Additional Information

More Information
EAN/UPC 4712856276701
MPN PDU41004
