Data Input Devices

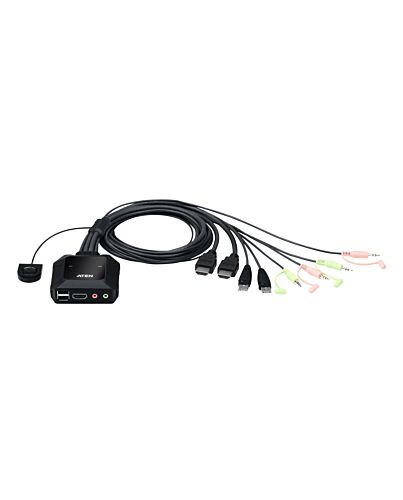

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
£79.82
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Key Features
- One USB keyboard, mouse and one HDMI monitor control two HDMI computers
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via remote port selector
- HDMI compliant; HDCP 2.2 compliant
- Supports USB hot-plugging
- The console USB ports can be used for USB peripheral sharing1
- Multiplatform support – Windows, Mac and Linux
- Hook design for space-saving and organized workstation
- Plug and play
- Bus-powered – no external power adapter required
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
3
Console ports*
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
2
Console HDMI ports quantity
1
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
HDCP
Yes
Hot-Plug support
Yes
Plug and Play
Yes
HDCP version
2.2
Design
Rack mounting*
No
Product colour*
Black
Housing material
Plastic
Wired remote switch
Yes
Cable length
1.2 m
Remote switch cable length
1.8 m
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
USB
Input voltage
5 V
Power
Power consumption (typical)
3.47 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
84.2 mm
Depth
83.4 mm
Height
30.4 mm
Weight
340 g
Packaging data
Package width
55 mm
Package depth
155 mm
Package height
223 mm
Package weight
420 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
6.8 kg
Harmonized System (HS) code
85176200
Master (outer) case width
328 mm
Master (outer) case length
389 mm
Master (outer) case height
330 mm
Master (outer) case gross weight
9.3 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710469340468 |
|---|---|
| MPN | CS22H |
| BRAND | ATEN |
