Data Input Devices

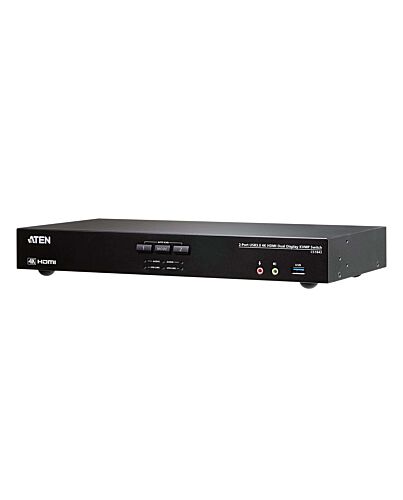

ATEN 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
£355.92
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Speaker Cables
2x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions
Key Features
- Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Quad-Display – connect two CS1842 units for a quad-display setup controlled by one operator
- Supports Video DynaSync™
- Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports*
3.5mm headphone, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,5,99 s
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Power
Input voltage
12 V
Power consumption (typical)
3.17 W
System requirements
Windows operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
335 mm
Depth
160.5 mm
Height
44 mm
Weight
2.75 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
3.52 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
8.25 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
11.5 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710469340031 |
|---|---|
| MPN | CS1842 |
