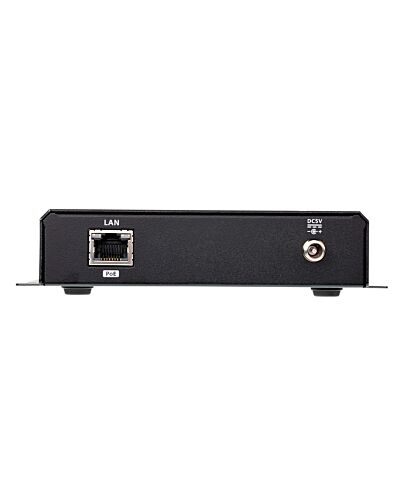

ATEN 4K HDMI over IP Transmitter with PoE
£630.92
ATEN 4K HDMI over IP Transmitter with PoE, 4096 x 2160 pixels, AV transmitter, 100 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VE8952T 4K HDMI over IP Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.
No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.
No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation.
Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.
Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets.
Flexible Control with Mobile App
Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : http://assets.aten.com/product/manual/VE89_Implementation_Guide.pdf
1x VE8952T 4K HDMI over IP Transmitter with PoE
1x JCNT-3301-103G RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x 0X02-0025-002G Foot Pads
1x User Instructions
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.
No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.
No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation.
Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.
Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets.
Flexible Control with Mobile App
Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : http://assets.aten.com/product/manual/VE89_Implementation_Guide.pdf
1x VE8952T 4K HDMI over IP Transmitter with PoE
1x JCNT-3301-103G RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x 0X02-0025-002G Foot Pads
1x User Instructions
Key Features
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Daisy Chaining - Connects multiple displays through a single port
- Video Wall Support
Specifications
Features
Type*
AV transmitter
Maximum resolution*
4096 x 2160 pixels
Maximum transfer distance
100 m
Maximum refresh rate
60 Hz
Front panel control (TX)
Yes
Extended display identification data (EDID)
Yes
LED indicators
Yes
HDCP
Yes
Material
Metal
Impedance
100 Ω
Daisy chain
Yes
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 output ports
1
HDMI in
1
USB ports quantity
1
USB connector type
USB Type-B
RS-232 input ports
1
Audio input
1
Serial ports quantity
1
Serial interface type
RS-232
Remote (IR) input
1
DC-in jack
Yes
Power
Operating voltage
5 V
External power adapter
Yes
Power
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
166 mm
Depth
124.9 mm
Height
29 mm
Weight
720 g
Packaging data
Quantity per pack
1 pc(s)
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
965 g
Packaging content
AC adapter included
Yes
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
336 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
5.25 kg
Master (outer) case net weight
3.6 kg
Products per master (outer) case
5 pc(s)
Additional Information
EAN/UPC | 4710469340390 |
---|---|
MPN | VE8952T |
