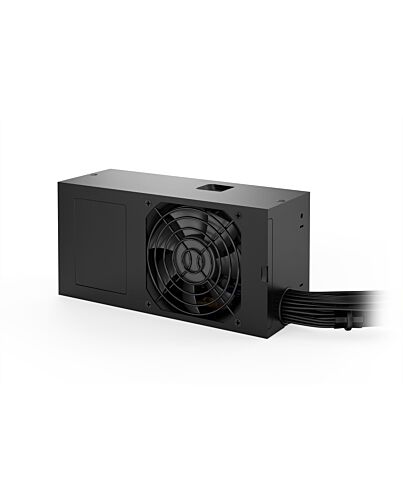

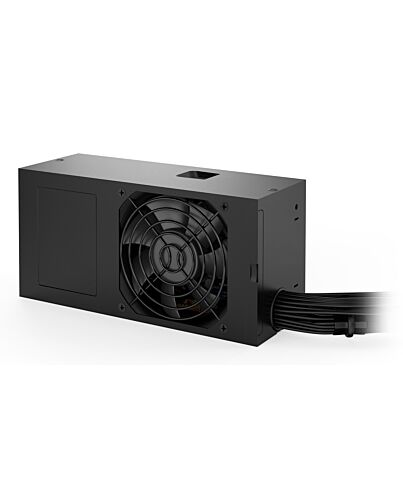

be quiet! TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
£59.82
be quiet! TFX POWER 3 300W Gold, 300 W, 100 - 240 V, 350 W, 50 - 60 Hz, 4/2 A, 4 A
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.
Key Features
- 80 PLUS® Gold efficiency (up to 91.7%) for lower power consumption
- Strong dual 12V-rails for high stability and PCIe graphics card support
- 300W of continuous power
- High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
- Sleeved or flat black cables up to 60cm long
- Meets the latest safety and efficiency requirements
- ern safety protections reliably defend against numerous failures
- Standby draw less than 0.17 watts
- Product conception, design and quality control in Germany
Specifications
Power
Total power*
300 W
Peak power
350 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
4/2 A
Maximum input current (@110V)
4 A
Maximum input current (@220V)
2 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
103 W
Combined power (+12V)
288 W
Combined power (+5V)
103 W
Max output current (+3.3V)
18 A
Max output current (+12V1)
13 A
Max output current (+12V2)
13 A
Max output current (+5V)
18 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
29 ms
Efficiency
90.6%
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
35 cm
Number of SATA power connectors
3
SATA power cable length
300,450,600 mm
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
300,450 mm
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
40 cm
CPU P4 connector (4-pin)
1
CPU power cable length
35 cm
Floppy drive power connector
1
Floppy disk drive cable length
60 cm
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Gold
Performance
Purpose*
PC
Power supply unit (PSU) form factor*
TFX
ATX version
2.52
EPS version
2.92
Noise level
21.7 dB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
8 cm
Number of fans
1 fan(s)
Certificates
Compliance certificates
RoHS, WEEE
Safety regulation & standards
Safety
CE, CB, TÜV, CU
Weight & dimensions
Width
85 mm
Depth
175 mm
Height
65 mm
Weight
1.1 kg
Packaging data
Package width
159 mm
Package depth
80 mm
Package height
215 mm
Package weight
1.43 kg
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Shipping (inner) case length
47.4 cm
Shipping (inner) case width
27.5 cm
Shipping (inner) case height
19.5 cm
Products per shipping (inner) case
6 pc(s)
Shipping (inner) case gross weight
9.39 kg
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 4260052188293 |
|---|---|
| MPN | BN323 |
| BRAND | BEQUIET |
