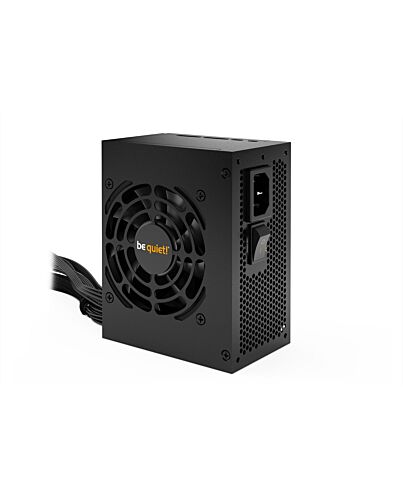

be quiet! SFX POWER 3 300W power supply unit 20+4 pin ATX Black
£48.56
be quiet! SFX POWER 3 300W, 300 W, 100 - 240 V, 350 W, 50 - 60 Hz, 5/2 A, 5 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
SFX Power 3 300W, the compact PSU from be quiet! that gives you more for your mini or media PC. It provides enough power to support powerful PCIe graphics cards while offering the ideal combination of power, quietness and reliability. That makes it the perfect choice for compact PC systems that perform beyond the ordinary.
Key Features
- Strong 12V rail with 300W of continuous power
- 6+2 pin PCIe connector for GPU support
- High-quality temperature-controlled 80mm fan for quiet operation of max. 29.4dB(A)
- Sleeved or flat black cables up to 60cm
- 80 PLUS® Bronze efficiency (up to 89.2%)
- Meets the latest safety and efficiency requirements
- Standby draw less than 0.1 watts
- Product conception, design and quality control in Germany
Specifications
Power
Total power*
300 W
Peak power
350 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
5/2 A
Maximum input current (@110V)
5 A
Maximum input current (@220V)
2 A
Power factor
0.98
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
85 W
Combined power (+12V)
300 W
Combined power (+5V)
85 W
Max output current (+3.3V)
16 A
Max output current (+12V1)
25 A
Max output current (+5V)
16 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Hold time
26.8 ms
Efficiency
88.1%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
35 cm
Number of SATA power connectors
3
SATA power cable length
300,450,600 mm
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
300,450 mm
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
40 cm
CPU P4 connector (4-pin)
1
CPU power cable length
40 cm
Floppy drive power connector
1
Floppy disk drive cable length
60 cm
Cabling type
Non-Modular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
SFX
Performance
ATX version
3.42
EPS version
2.92
Noise level
29.4 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
8 cm
Number of fans
1 fan(s)
On/off switch
Yes
Certificates
Compliance certificates
RoHS, WEEE
Safety regulation & standards
Safety
CE, CB, TÜV, CU
Weight & dimensions
Width
125 mm
Depth
100 mm
Height
64 mm
Weight
840 g
Packaging data
Package width
197 mm
Package depth
75 mm
Package height
207 mm
Package weight
1.19 kg
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Shipping (inner) case length
45.7 cm
Shipping (inner) case width
26.5 cm
Shipping (inner) case height
23.3 cm
Products per shipping (inner) case
6 pc(s)
Shipping (inner) case gross weight
7.91 kg
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 4260052188262 |
|---|---|
| MPN | BN320 |
